Description
Police use alcohol tester Panther-1
Product Features
- Quick and Precise Analysis: 32bit embedded processor secures high performance of the system.
- UK made Electrochemical/Fuel cell sensor: Highly specificity to alcohol, unaffected by other possible breath contaminants.
- Compact Gas Circuit Design and Advanced Analysis process: Assure fast, accurate and stable testing results.
- Built-in Printer: Fast printing process and clear print-outs. Can be detached from main body and be replaced by a piece of spare lithium-ion cell.
- Color LCD Touch Screen: 2.8 inch 320*240 dot matrix screen provides intuitive operation.

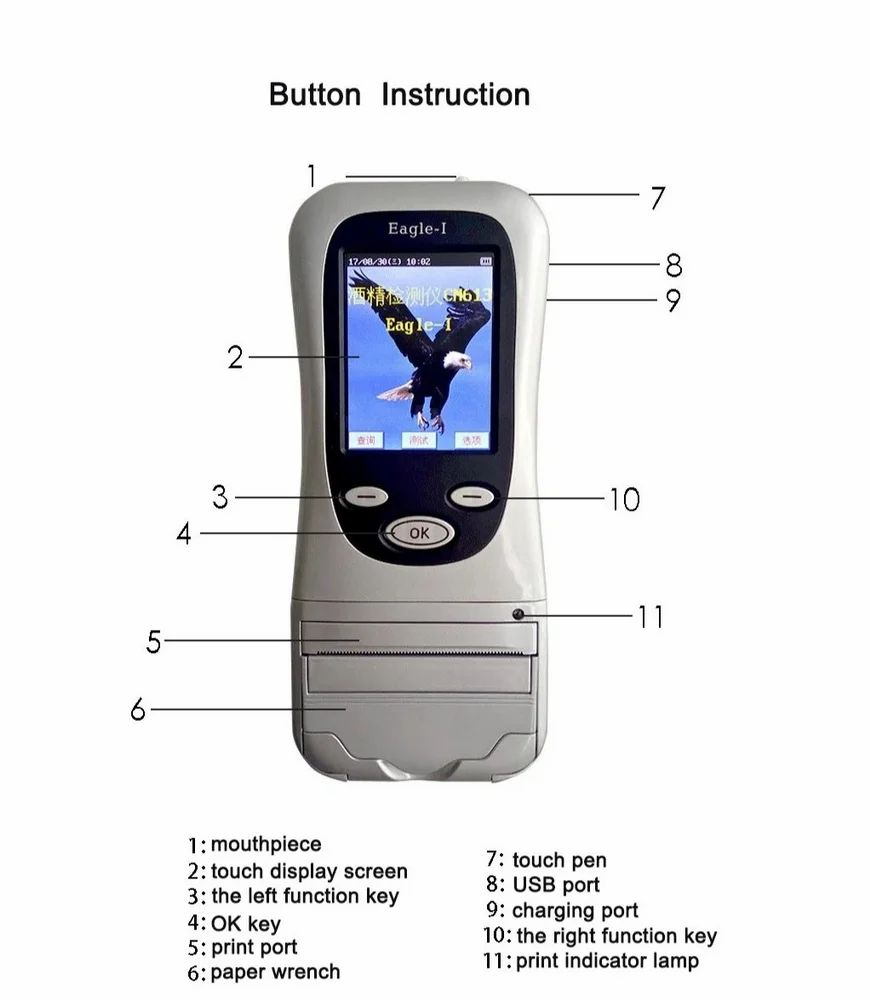

- Safe & Easy to Use: All measurement functions are controlled via a single key, while menu navigation is by three menu keys
- Memory Capacity: Data storage of 40,000 test results. Any test results can be easily recalled, printed or downloaded to a computer for statistical analysis and back up.
Technical Data
| Details | Technical Data | ||
| Principle of measurement | Electrochemical Sensor, alcohol-specific | ||
| Measurement Range (BrAC) | 0.000mg/L~2.000mg/L | ||
| Resolution | 0.001 mg/L | ||
| Accuracy: Max. Measuring error, in relation to the ethanol standard |
Ethanol Vapor Concentration C /(mg/L) |
Deviation | |
| C<0.400 | ±0.020mg/L | ||
| 0.400≤C<1.000 | ±5% | ||
| C≥1.000 | ±20% | ||
| Calibration | Every 6 months | ||
| Temperature range- operation | -10°C~45°C | ||
| Temperature range-storage | -30°C~70°C | ||
| Optimum Storage Conditions | Temperature: 20°C ±5°C, Humidity: <80%RH, Pressure: 86kPa~106kPa No vapor or electromagnetic disturbances in the environment are influencing the normal working conditions of the device |
||
| Blowing Time | 3 seconds (breath flow:≥20L/min) | ||
| Warm-up Time | 6 seconds after switching on | ||
| Recovery Time | 1-5 minutes, depends on Ethanol Vapor Concentration | ||
| Analysis Time | Less than 10 seconds | ||
| Display | 2.8 inch color touch screen | ||
| Memory Capacity | Stores 40,000 measured values with date and time (data can be transferred to a PC or printer) |
||
| Communication Method for Printer | Bluetooth | ||
| Printer | Micro Thermal printer | ||
| Dimensions(L x W x H) | Approx. 182mm×80mm×34mm | ||
| Number of Measurements per Battery Pack | More than 500 times (under ambient conditions) | ||
| Operation Voltage | State of charging | State of operation | |
| DC10~14V | DC 6.3~8.4V | ||
| Batteries | 2000mAh/7.4V Lithium-ion-battery | ||
| Weight | Approx. 450g(including printer, batteries, paper roll) | ||
Specifications
| Application Type | Law Enforcement |
|---|---|
| Type | Handheld |
| Brand | ULTRASHINE |
| Sensor Type | Electrochemical |
| Model Name | Panther-1 |
| Warning Signal | Beep |
| Mouthpiece Type | Replaceable |
| Type Of Testing Machines | Breath Analysers |
| Measurement Mode | Active and Passive Mode |
| Packaging Type | Box |
| Portability | Handheld |
| Accuracy | ± 5 % |
| Color | Silver |
| Usage/Application | Law Enforcement Agencies |
| Display Type | Digital |
| Display | 2.8 inch color touch screen |
| Certification | ISO 9001 |
| Type Of Mouthpiece | Replaceable |
| Detection Range | 0.50 mg/L (0.10 % BAC) |
| Analyzing Time | 4 s |
| Grade | Semi Automatic |
| Power Source | Rechargeable Battery |
| Clearing Time | 6 s |
| Material | ABS |
| Memory Capacity | Stores 40,000 measured values with date and time(data can be transferred to a PC or printer) |
| Response Time | 5 s |
| Features | Built-in Printer |
| Application | Law Enforcement/Police |
| Connectivity | USB, RS-232 |
| Mode of Operation | Three-key Operation |
| Country of Origin | Made in India |
| Details | Technical Data |
| Principle of measurement | Electrochemical Sensor, alcohol-specific |
| Measurement Range (BrAC) | 0.000mg/L~2.000mg/L |
| Resolution | 0.001 mg/L |
| Accuracy:Max. Measuring error, in relation to the ethanol standard | Ethanol Vapor Concentration C /(mg/L) |
| C<0.400 | ±0.020mg/L |
| 0.400≤C<1.000 | ±5% |
| C≥1.000 | ±20% |
| Calibration | Every 6 months |
| Temperature range- operation | -10°C~45°C |
| Temperature range-storage | -30°C~70°C |
| Optimum Storage Conditions | Temperature: 20°C ±5°C, Humidity: <80%RH, Pressure: 86kPa~106kPaNo vapor or electromagnetic disturbances in the environment are influencing the normal working conditions of the device |
| Blowing Time | 3 seconds (breath flow:≥20L/min) |
| Warm-up Time | 6 seconds after switching on |
| Recovery Time | 1-5 minutes, depends on Ethanol Vapor Concentration |
| Analysis Time | Less than 10 seconds |
| Communication Method for Printer | Bluetooth |
| Printer | Micro Thermal printer |
| Dimensions(L x W x H) | Approx. 182mm×80mm×34mm |
| Number of Measurements per Battery Pack | More than 500 times (under ambient conditions) |
| Operation Voltage | State of charging |
| DC10~14V | DC 6.3~8.4V |
| Batteries | 2000mAh/7.4V Lithium-ion-battery |
| Weight | Approx. 450g(including printer, batteries, paper roll) |
| Minimum order quantity | 1 Piece |
