Description

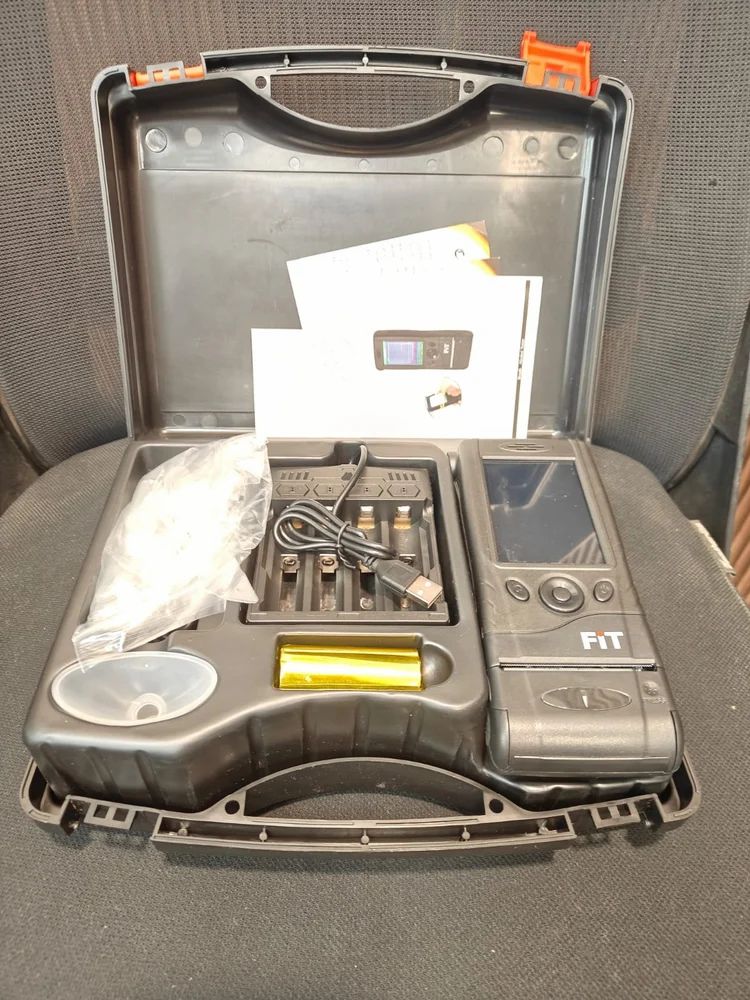

Fit 333 Professional Breath Alcohol Analyzer
The FiT 333 is manufactured and supplied by ULTRASHINE TECHNOLOGIES in NEW DELHI. You can buy it from IndiaMART or Gima Italy.Overview
|
The fuel cell is a porous disk with a thin layer of platinum black on both faces and any alcohol that comes in contact with the cell’s surface is broken down chemically. For each molecule of alcohol that is broken down a given number of electrons are freed during the process. The numbers of electrons generated are in proportion to the amount of alcohol. |
|
Can be detached from alcohol analyzer and become a stand alone wireless printer. |
|
3. Display: |
Color 3.2″ (320*480) iPS LCD whit touch screen with graphic waveform (as oscilloscope) |
|
4. Navigating key input: |
Navigating key input with Touch Panel |
|
5. Quick and precise analysis: |
Ensure a high sensitivity to alcohol and stable & reliable working life. |
|
6. Easy to read: |
Waveform graphic display and make the analyzer more fancy and clear |
|
7. Data download: |
PC down via USB |
|
8. Mouthpiece: |
Easy to replace a new mouthpiece by pressing a key |
|
9. Power Supply: |
Li-on Rechargeable battery (about 2500mAh) |
|
10. Heat warm up: |
Chamber & Sensor warm up automatically |
|
11. Auto flow monitoring: |
Flow detect automatically |
|
12. Display range: |
0~0.5% BAC or 0~5.0‰BAC or 0~2.5mg/l |
|
13. Long Term Storage condition: |
Temperature: 0 Degree C to +55 Degree C. Humidity: 30 to 90% RH |
|
14. Temperature Range: |
From -20°C to +45°C, ( 5 Degree C to +40 Degree C for optimum operation) |
|
15. Memories: |
Min. 99000 memories with full information: Drive name, vehicle no., inspector name, test result with time stamp, date and time, location, instrument no., Calibration date, test no. etc… |
|
16. Measurement precision: |
Standard deviation +/–0.025 mg/L or +/–5 % of the measurement |
|
17. Standard: |
Certified GB/T 21254-2007; CE Comply with S&E, AS , NF, DOT, OIML126 |
Specifications
| Brand | ULTRASHINE |
|---|---|
| Application Type | Industrial |
| Type | Handheld |
| Sensor Type | Advanced Fuel Cell |
| Model Name | FIT333 |
| Warning Signal | Beep |
| Mouthpiece Type | Replaceable |
| Measurement Mode | Active and Passive Mode |
| Packaging Type | Box |
| Portability | Handheld |
| Accuracy | 95 % |
| Display Type | Digital |
| Usage/Application | Law Enforcement Agencies |
| Measurement Range | 0.40% BAC |
| Display | LCD Display |
| Load Capacity | 500 Test Per day |
| Printer | With Printer |
| Type Of Mouthpiece | Replaceable |
| Grade | Semi Automatic |
| Substance Tested | Alcohol |
| Analyzing Time | 4 s |
| Sample Type | Breath |
| Clearing Time | 6 s |
| Continuous Working Time | 8 hr |
| Brand. | ULTRASHINE |
| POWER SUPPLY. | Rechargeable 3.7V/7.4V Li-ion battery |
| Unit Setting | mg/L,mg/100mL |
| 1. Electrochemical / Fuel Cell Sensor: | The fuel cell is a porous disk with a thin layer of platinum black on both faces and any alcohol that comes in contact with the cell's surface is broken down chemically. For each molecule of alcohol that is broken down a given number of electrons are freed during the process. The numbers of electrons generated are in proportion to the amount of alcohol. |
| 2. Built-in /detachable Wireless Printer: | Can be detached from alcohol analyzer and become a stand alone wireless printer. |
| 3. Display: | Color 3.2" (320*480) iPS LCD whit touch screen with graphic waveform (as oscilloscope) |
| 4. Navigating key input: | Navigating key input with Touch Panel |
| 5. Quick and precise analysis: | Ensure a high sensitivity to alcohol and stable & reliable working life. |
| 6. Easy to read: | Waveform graphic display and make the analyzer more fancy and clear |
| 7. Data download: | PC down via USB |
| 8. Mouthpiece: | Easy to replace a new mouthpiece by pressing a key |
| 9. Power Supply: | Li-on Rechargeable battery (about 2500mAh) |
| 10. Heat warm up: | Chamber & Sensor warm up automatically |
| 11. Auto flow monitoring: | Flow detect automatically |
| 12. Display range: | 0~0.5% BAC or 0~5.0‰BAC or 0~2.5mg/l |
| 13. Long Term Storage condition: | Temperature: 0 Degree C to +55 Degree C. Humidity: 30 to 90% RH |
| 14. Temperature Range: | From -20°C to +45°C, ( 5 Degree C to +40 Degree C for optimum operation) |
| 15. Memories: | Min. 99000 memories with full information: Drive name, vehicle no., inspector name, test result with time stamp, date and time, location, instrument no., Calibration date, test no. etc… |
| 16. Measurement precision: | Standard deviation +/–0.025 mg/L or +/–5 % of the measurementDrift: typically < 0.8 % of the measurement value/month |
| 17. Standard: | Certified GB/T 21254-2007; CE Comply with S&E, AS , NF, DOT, OIML126 |
| Minimum order quantity | 1 Piece |
