Description

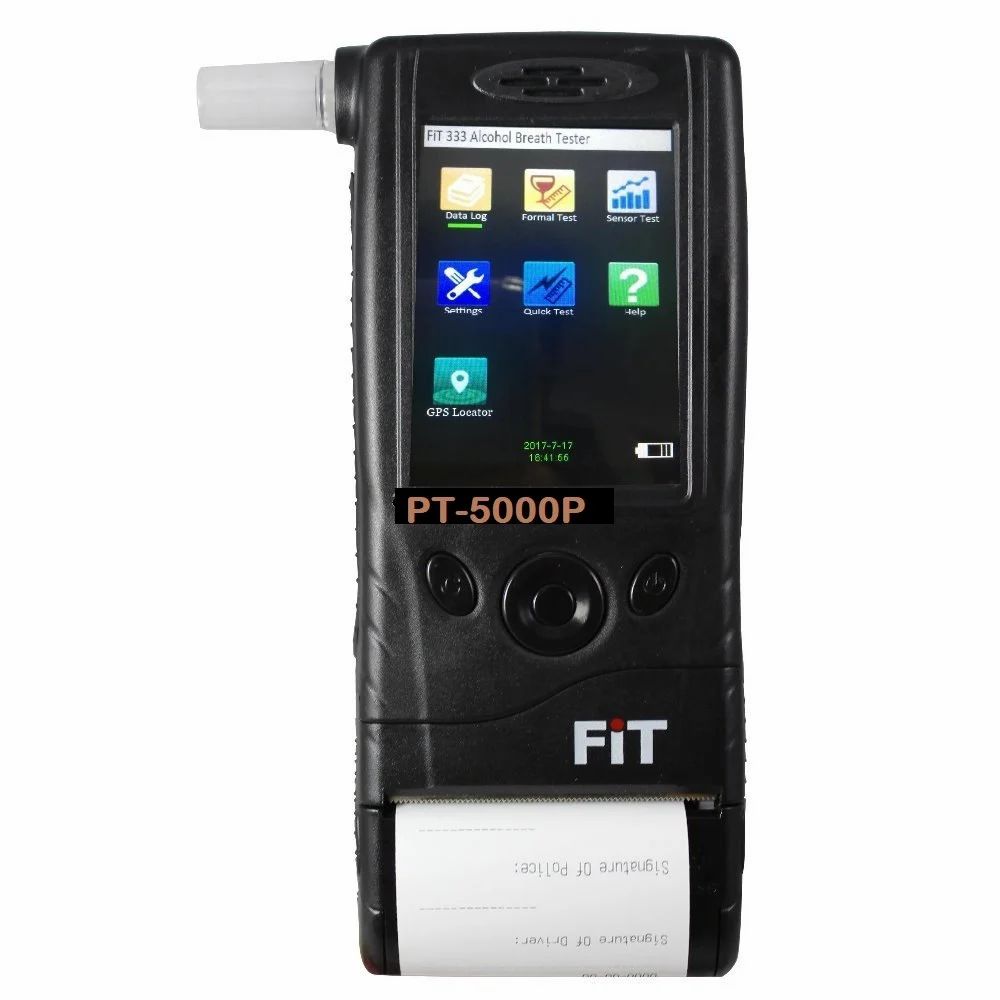

Digital Alcohol Breath Analyzer, PT 5000P (Touch Screen)
Product Specification:
|
1. Electrochemical / Fuel Cell Sensor: |
The fuel cell is a porous disk with a thin layer of platinum black on both faces and any alcohol that comes in contact with the cell’s surface is broken down chemically. For each molecule of alcohol that is broken down a given number of electrons are freed during the process. The numbers of electrons generated are in proportion to the amount of alcohol. |
|
2. Built-in / detachable Wireless Printer: |
Can be detached from alcohol analyzer and become a stand alone wireless printer. |
|
3. Display: |
Color 3.5″ iPS TFT LCD whit touch screen with graphic waveform (as oscilloscope) |
|
4. Navigating key input: |
Navigating key input with Touch Panel |
|
5. Quick and precise analysis: |
Ensure a high sensitivity to alcohol and stable & reliable working life. |
|
6. Easy to read: |
Waveform graphic display and make the analyzer more fancy and clear |
|
7. Data download: |
PC down via USB |
|
8. Mouthpiece: |
Easy to replace a new mouthpiece by pressing a key |
|
9. Power Supply: |
Rechargeable 7.4V Li-ion battery. |
|
10. Heat warm up: |
Chamber & Sensor warm up automatically |
|
11. Auto flow monitoring: |
Flow detect automatically |
|
12. Display range: |
0~0.4% BAC or 0~4.0‰BAC or 0~2.0mg/l |
|
13. Long Term Storage condition: |
Temperature: 0 Degree C to +55 Degree C. Humidity: 30 to 90% RH |
|
14. Temperature Range: |
From -20℃ to +45 ℃, ( 5 Degree C to +40 Degree C for optimum operation) |
|
15. Memories: |
Min. 50,000 memories with full information: Drive name, vehicle no., inspector name, test result with time stamp, date and time, location, instrument no., Calibration date, test no. etc… |
|
16. Measurement precision: |
Standard deviation +/–0.025 mg/L or +/–5 % of the measurement |
|
17. Standard: |
Certified GB/T 21254-2007; CE Compile with S&E, AS , NF, DOT, OIML126 |
Specifications
| Application Type | Law Enforcement |
|---|---|
| Type | Handheld |
| Brand | ULTRASHINE |
| Sensor Type | Advanced Fuel Cell |
| Model Name | PT5000P |
| Type Of Testing Machines | Alcohol Breath Analysers |
| Warning Signal | Beep |
| Mouthpiece Type | Replaceable |
| Measurement Mode | Active and Passive Mode |
| Packaging Type | Box |
| Portability | Handheld |
| Accuracy | ± 5 % |
| Color | Black |
| Instrument Name | Breath Analyser |
| Usage/Application | Workplace |
| Model Name/Number | PT-5000P |
| Display Type | Digital |
| Parameters | Blood Alcohol Content |
| Automation | Semi Automatic |
| Display | LED Display |
| User Input | Touch |
| Grade | Semi-Automatic |
| Power Supply | Charger AC |
| 1. Electrochemical / Fuel Cell Sensor: | The fuel cell is a porous disk with a thin layer of platinum black on both faces and any alcohol that comes in contact with the cell's surface is broken down chemically. For each molecule of alcohol that is broken down a given number of electrons are freed during the process. The numbers of electrons generated are in proportion to the amount of alcohol. |
| 2. Built-in / detachable Wireless Printer: | Can be detached from alcohol analyzer and become a stand alone wireless printer. |
| 3. Display: | Color 3.5" iPS TFT LCD whit touch screen with graphic waveform (as oscilloscope) |
| 4. Navigating key input: | Navigating key input with Touch Panel |
| 5. Quick and precise analysis: | Ensure a high sensitivity to alcohol and stable & reliable working life. |
| 6. Easy to read: | Waveform graphic display and make the analyzer more fancy and clear |
| 7. Data download: | PC down via USB |
| 8. Mouthpiece: | Easy to replace a new mouthpiece by pressing a key |
| 9. Power Supply: | Rechargeable 7.4V Li-ion battery. |
| 10. Heat warm up: | Chamber & Sensor warm up automatically |
| 11. Auto flow monitoring: | Flow detect automatically |
| 12. Display range: | 0~0.4% BAC or 0~4.0‰BAC or 0~2.0mg/l |
| 13. Long Term Storage condition: | Temperature: 0 Degree C to +55 Degree C. Humidity: 30 to 90% RH |
| 14. Temperature Range: | From -20℃ to +45 ℃, ( 5 Degree C to +40 Degree C for optimum operation) |
| 15. Memories: | Min. 50,000 memories with full information: Drive name, vehicle no., inspector name, test result with time stamp, date and time, location, instrument no., Calibration date, test no. etc… |
| 16. Measurement precision: | Standard deviation +/–0.025 mg/L or +/–5 % of the measurementDrift: typically < 0.8 % of the measurement value/month |
| 17. Standard: | Certified GB/T 21254-2007; CE Compile with S&E, AS , NF, DOT, OIML126 |
| Minimum order quantity | 1 Piece |
