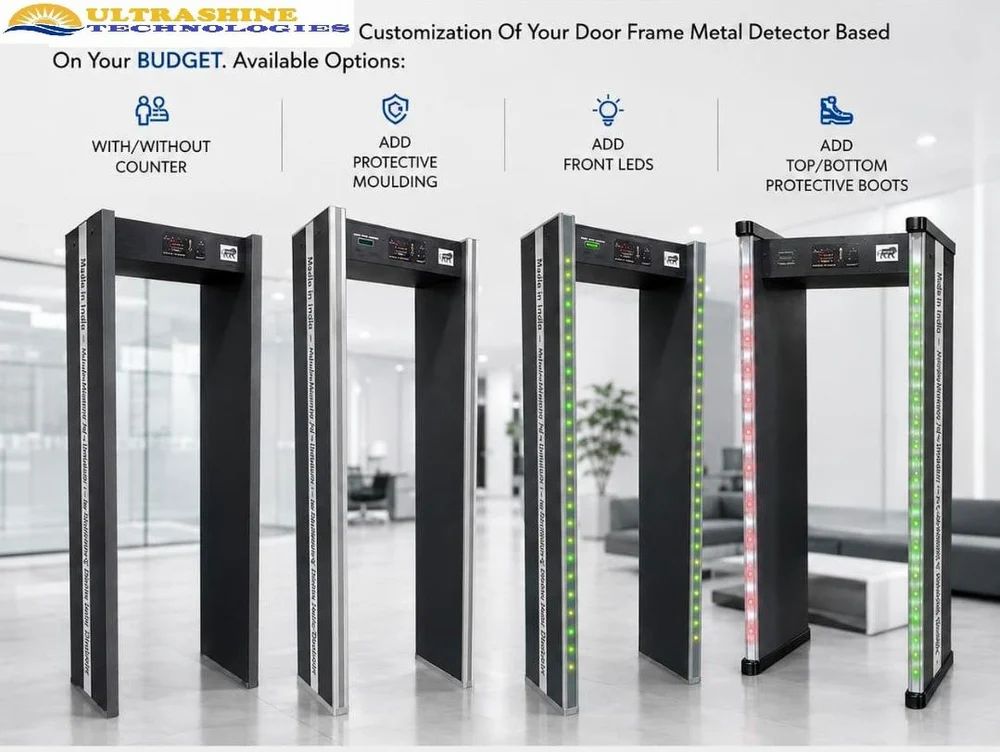

Single Zone Door Frame Metal Detectors- Safegate-II
SAFEGATE-II is a reliable single piece walk-through metal detector system that does not require a separate control unit. It has been developed to detect clandestine ferrous and non-ferrous metals on the body of a person when asked to pass through the doorframe. It is also equipped with an intelligent 5 digit back-lit LCD counter to indicate the in, out and algebraic sum of the traffic going through the door frame.
It has been designed for fast installation and operation under all environments. Long life LED Walk/Stop indicators are incorporated on top of the doorframe to regulate the flow of traffic. All controls and audio / visual alarms such as piezo transducer, LED bar graph, indicator lamps and sensitivity controls are provided at the rear top of the door.
- Features:
- Automatic zero adjustment.
- Quick installation no training required.
- Ignores external metals.
- 10 levels of sensitivity.
- 10 step bar-graph indicator.
- Intelligent counter for traffic entry, exit and algebraic sum.
- Piezoelectric beeper for indication of metal.
- Walk and Stop indicators to regulate traffic.
- Detects all metals, alloys and ferrites.
- Low field strength – no effect on pacemakers & magnetic media.
- SMPS power supply for use with 90V to 270V.
- Built in full-function battery backup for over 12 hours.
Specifications
| Number of Zones | Single Zone |
|---|---|
| Detection Zones | Single Zone |
| Activation Type | Walk Through |
| Metal Detector Type | Door Frame Metal Detectors |
| Alarm Mode | Audio & LED |
| Passage Width | 700–800 mm |
| Power Supply | 230V AC |
| Model Name/Number | SF-II |
| Brand | ULTRASHINE |
| Usage/Application | Restaurant, Office, Factory, Shopping Mall, Airport, Metro Station, Events & Exhibition |
| Color | Grey |
| Usage Area | Metro, Factory, Airport, Mall, Office, Events, Hotel |
| Body Material | MS Powder Coated |
| Metal Type | Ferrous & Non Ferrous |
| IP Rating | IP65 |
| Battery Backup | 12 Hours |
| SMPS Power Supply | 90V to 270V. |
| Minimum order quantity | 1 Piece |
