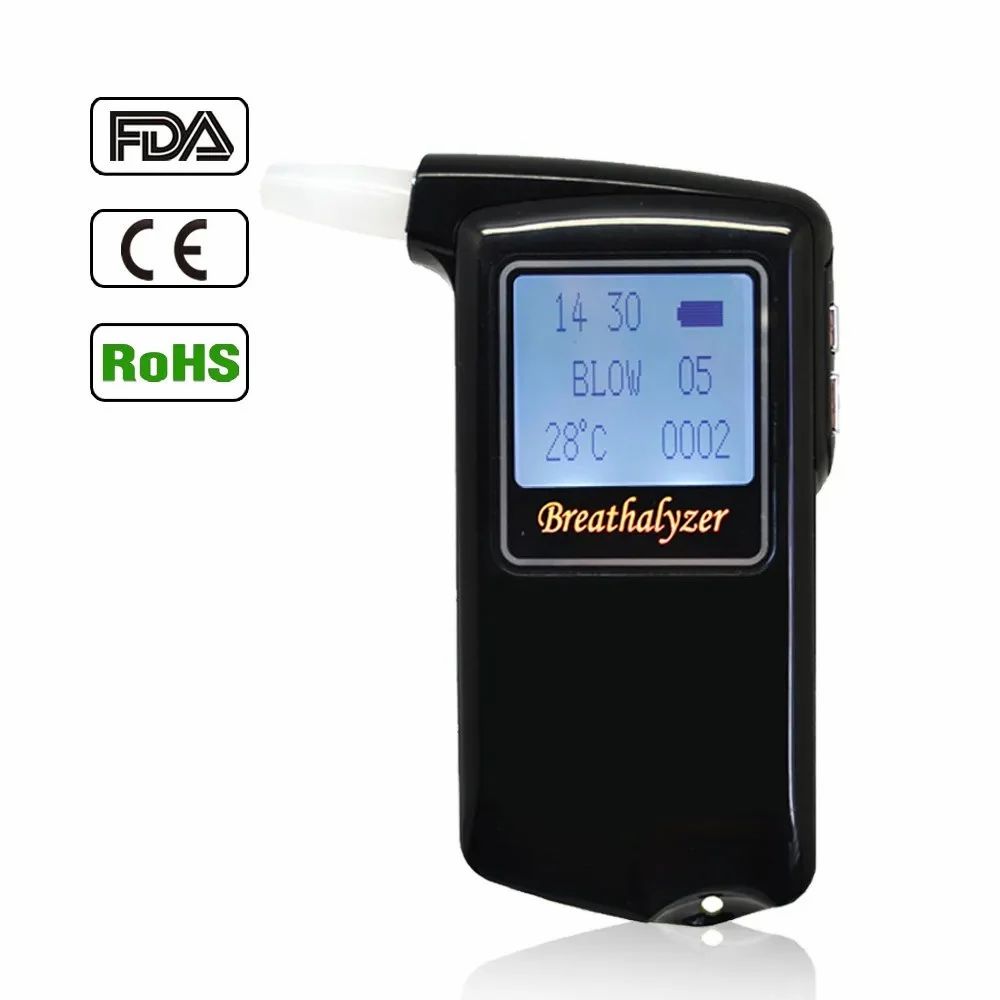

Alcohol Breath Analyser AT-868F
Product Description : Alcohol breath tester AT868F model, is commonly used at home, bar, laboratory, police, military and airport or while you are on the road device provided with extra mouthpieces for convenience. units activated through a micro switch, after a brief internal self test; the test subject blows through the sensor and result are converted and read within few sec.
Product Features :
1.Two language Optional – Chinese/English
2.10 Test results use history record
3. Wireless connet mini printer, can print the test results
4. Electro-chemistry Fuel cell ethyl alcohol sensor
5.Temperature display
6.Drink alarm point Drunk alarm point optional
7.Portable case to convenient portbale
8.2.0’ lattice black and white LCD display , wide operating temperature range
9. Two alarm points for option : drinking ,drunk
10. 5 test units optional (ºC, ‰BA C, mg/L; g/l, mg/100ml)
11. Low battery alarm and power off automatically
Technical Specification
| Model | AT-868 |
| Sensor | Electro-chemistry fuel cell ethyl alcohol sensor |
| Ambient conditions | Operation:5°C to 40°C |
| Storage:-10 to 50°C | |
| Test range | 0~2.000mg/l 0~440 mg/100ml 0~0.400ºC 0~0.400 g/l 0~4.000‰BAC |
| Accuracy | ±0.020 mg/l at C<0.400 ±5% at 0.400≤C<1.000 ±20% at C≥1.000 |
| Alarm point | ±0.007 mg/l at C<0.400 ±1.75% at 0.400≤C<1.000 ±6% at C≥1.000 |
| Power input | 3x 1.5 v “AAA” alkaline batteries +1 AC charger |
| Optimum Storage Conditions | Temperature:20℃±5℃ |
| Humidity: <80%RH | |
| Pressure | 86kPa~106 kPa |
| Dispplay | 2.0 inch LCD display |
| Blowing time | 5 seconds(breath flow:≥10 L/min) |
| Response time | <5s |
| Warm-up time | <20s |
| Operating current | ≤120MA |
| Mouthpiece | Use(incluidng 5pcs) |
| Certficate | CE & ROHS |
Specifications
| Application Type | Clinical |
|---|---|
| Type | Handheld |
| Brand | ULTRASHINE |
| Sensor Type | Semiconductor |
| Model Name | AT-868F |
| Mouthpiece Type | Replaceable |
| Warning Signal | Beep |
| Measurement Mode | Active Sampling |
| Packaging Type | Box |
| Portability | Portable |
| Accuracy | ±0.020 mg/l at C<0.400±5% at 0.400≤C<1.000±20% at C≥1.000 |
| Model Name/Number | AT-868F |
| Display Type | Digital |
| Usage/Application | Law Enforcement Agencies |
| Display | LED Display |
| Type Of Mouthpiece | Replaceable |
| Grade | Semi-Automatic |
| Material | ABS |
| Color | Black |
| Country of Origin | Made in India |
| Model | AT-868 |
| Sensor | Electro-chemistry fuel cell ethyl alcohol sensor |
| Ambient conditions | Operation:5°C to 40°C |
| Test range | 0~2.000mg/l0~440 mg/100ml0~0.400ºC0~0.400 g/l0~4.000‰BAC |
| Alarm point | ±0.007 mg/l at C<0.400±1.75% at 0.400≤C<1.000±6% at C≥1.000 |
| Power input | 3x 1.5 v “AAA” alkaline batteries +1 AC charger |
| Optimum Storage Conditions | Temperature:20℃±5℃ |
| Pressure | 86kPa~106 kPa |
| Dispplay | 2.0 inch LCD display |
| Blowing time | 5 seconds(breath flow:≥10 L/min) |
| Response time | <5s |
| Warm-up time | <20s |
| Operating current | ≤120MA |
| Mouthpiece | Use(incluidng 5pcs) |
| Certficate | CE & ROHS |
| Minimum order quantity | 2 Piece |
