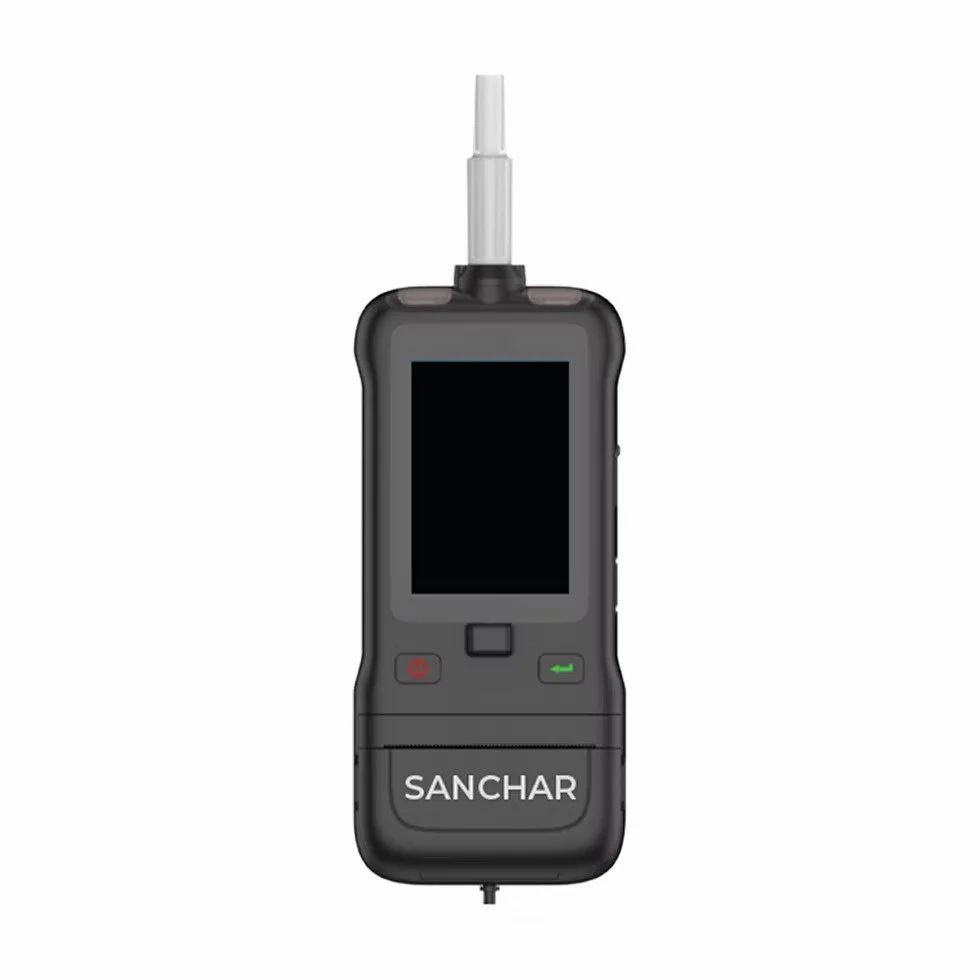

Sanchar SBAA-02 Alcohol Breath Analyser with Camera

Description

Sanchar SBAA-02 Alcohol Breath Analyser with Camera & Printer

The Breath Alcohol Analyzer is a handheld law enforcement instrument for use as preliminary roadside screening tests of alcohol influence used for evidentiary purposes, the results of which are used for prosecuting traffic offenders. Based on the principle of fuel cell technology, the device checks with reliable accuracy with touch screen.

• Inbuilt GPS (Optional)

• Camera System

• Upto IP65 (Optional)

• Inbuilt Thermal Printer

• Active and Passive Mode

• Sturdy Carrying Briefcase

• 3.2 inch Colour Touch Screen

• Fuel Cell Sensor – for Accuracy

• Supports 4G, Wi-Fi, USB, Bluetooth (Optional)

• Mouthpiece with Anti- backflow Design for Health and Safety

Application use in Police Station, Traffic Management, Factory, Workshop, Office, Car, Hotel, Mine etc.

Indications Over Range- Low Battery
Sensor Type– Fuel cell sensor
Camera- 8MP , 5MP (Optional)
Measurement mode- Active and Passive Mode
Units- ºC, ‰BAC, mg/L, g/L, mg/100ml, mg%
Power- Rechargeable Battery and 12V DC Power
Measurement Range- (BAC) 0-600 mg/100ml
Dimension- (LxWxH) 190mm*43mm*82mm ±3% (0-0.600mg/l)
Weight 309g Including Printer- ±5% (0.600-1.000mg/l)
Battery- 7.4V Li-ion 2500 mAh Li-ion Rechargeable Battery ±20% (1.000-2.000mg/l)
Battery backup time- 25 hours
Network Connectivity USB, Wi-Fi, Bluetooth, 4G (Optional)
Charging Time- 4 hours
Input mode 3.2 inch touch screen with 2 Main Keys + Multi-Function Digital Keyboard
Warm-up Time 7 seconds
Sample taking Time 3 seconds
Operation Temperature Range-30 to 60 °C
Response Time at 0 level of Alcohol 3 seconds
Storage Temperature Range-30 to 70 °C
Response Time at positive result 5 seconds
Barometric Pressure Range upto 1300 millibar
Recovery Time 1 seconds
Relative Humidity During Operation 95%
Printer In-Built Thermal Printer
Power Save Mode Yes
Paper Standard 57mm paper roll
Software Management Yes
Print resolution 300 dpi
Sensor Calibration 12 months
Mouthpiece Easily Replaceable Pipe
Records Memory capacity 1,00,000
Drift in 6 months period (mg / 100 ml BAC) <1.0%

SANCHAR Note: To enhance reliability, functionality, or design, product specifications and colors may be modified without prior notice. Images are for illustration only, and actual products may differ. Sanchar delivers tailored products and solutions based on specific site or customer needs. Any minor specification or appearance adjustments for custom orders are tracked by version
