Description

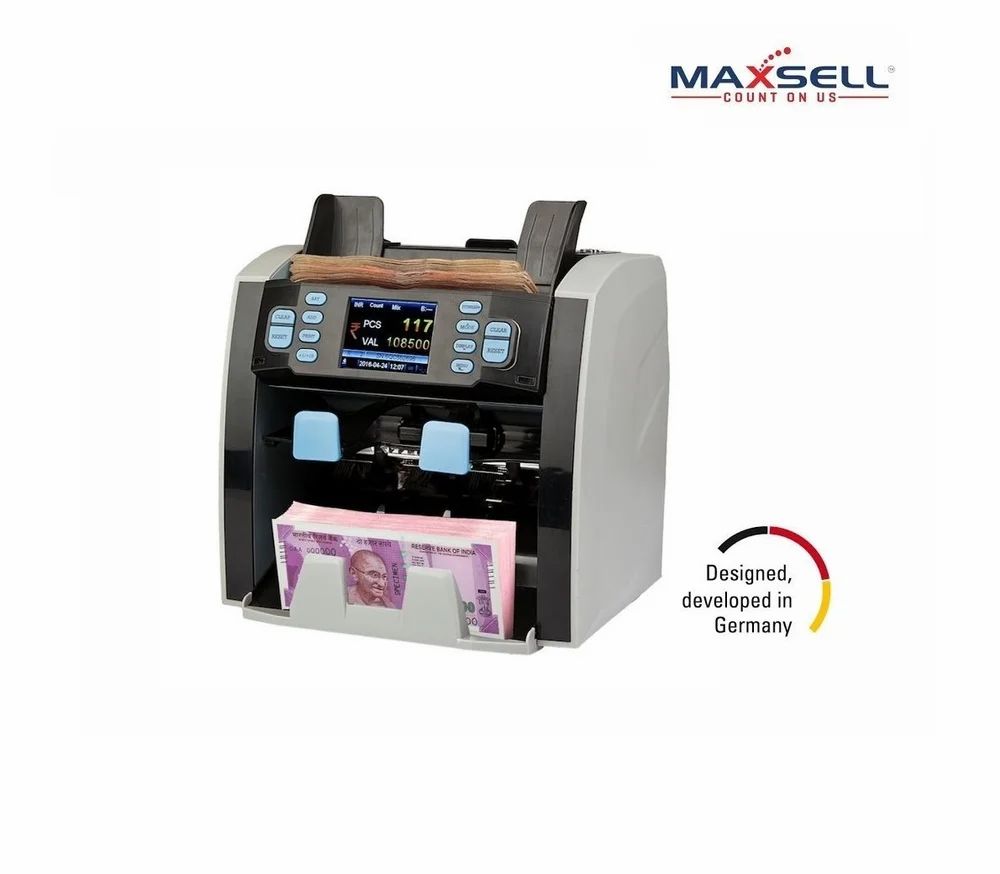

MAXSELL MATRIX 8128 Note Sorting Machine
The Matrix 8128-SF is a high-speed counting machine that simplifies the cash handling process. It eliminates human error and also saves time. The old and worn-out notes must be counted at low speed to reduce the risk of ripping. Therefore the settings offer the following options for speed: 800, 1000, 1200 banknotes per minute. You can select any one among them based on your convenience.
The Matrix 8128-SF is the first machine that is designed for Indian banknotes. It can accurately count the value of the unsorted (Mixed Denomination) banknotes in batches. For this, simply select the “Preset Batch Value”, and the machine will automatically pause counting each time the batch value is reached.
The Matrix 8128-SF uses the latest counterfeit detection technology to scrutinize seven features of the currencies: ultraviolet, magnetic ink, metallic thread, infrared, image, size, and thickness. It can accurately detect double banknotes and half notes. If a counterfeit is detected the machine automatically rejects the banknote without a pause. After the completion of counting the machine will report the reason for the rejected banknotes.
The fit and unfit notes go to corresponding pockets from the rejection pocket, using a military-grade sensor that detects mutilated notes, cut notes, taped notes, soiled notes, and other kinds of defective banknotes.
To make your administrative task much easier, the Matrix 8128-SF automatically displays the detailed counting report on your PC, which can later be saved and printed. The full detailed list of all the scanned serial numbers can be viewed, saved, and printed on a PC with just one click.
| Counting speed | 800~1200 notes/min |
|---|---|
| Hopper capacity | 500 notes (continuous feeding) |
| Stacker capacity | 220 notes |
| Rejection Pocket capcity | 50 notes |
| Detection Technology | Twin CIS, UV, MG, MT, IR, 2D & 3D |
| Fitness Detection | Tape, Soiled, Holes, Graffiti, Unfit, Mutilated notes |
| Noise | ≤60Db |
| Power supply | 100-240V AC,50/60Hz 3.0A |
| Power consumption | ≤50W |
| Dimensions | 251(L)*271(W)*264(H)mm |
| Weight | 8.5 Kg |
| Interface | RS-232, Printer, USB, SD card, LAN (optional) |
Specifications
| Sorting Type | Fitness Sorting |
|---|---|
| Counting Speed | 800-1200 note per min |
| Machine Type | Fully Automatic |
| Detection Features | UV, IR, MG |
| Detection Technology | IR |
| Hopper Capacity | 500 notes |
| Stacker Capacity | 300 Notes |
| Number of Pockets | 1 Pocket |
| Dimensions | 251L X 271 W X 264 H mm |
| Color | White |
| Tray Size | Standard Size |
| Compatibility | USB |
| Power Consumption | 100-240V AC,50/60Hz 3.0A |
| Cis Technology | Twin CIS, UV, MG, MT, IR, 2D & 3D |
| Connectivity Interfaces | RS-232, Printer, USB, SD card, LAN (optional) |
| Country of Origin | Made in India |
| Usage/Application | Bank, Restaurant and others |
| Minimum order quantity | 1 Piece |
