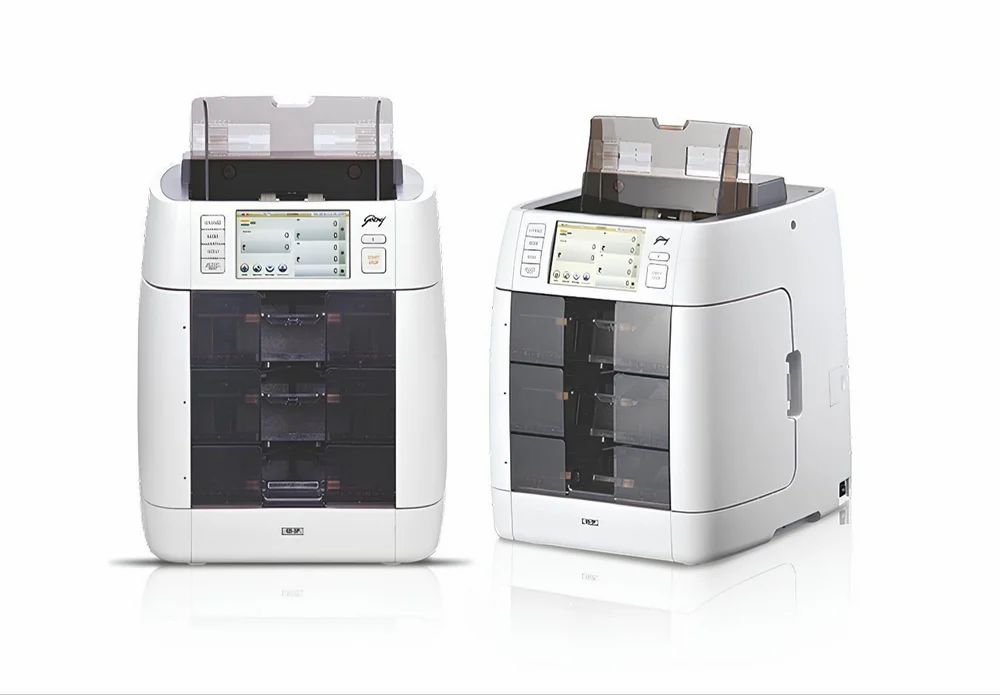

Godrej Fitness Sorter GS 3P Note Sorter
Description
The all in one currency handling equipment is here!The Godrej GS-3P Fitness Sorter is an intelligent and reliable Banknote Counting Machine, which uses double sided Image Processing Technology to recognize banknotes and to discriminate between different denominations. It is the world’s smallest 3 pocket fitness sorter. With modern design, 5” TFT Color LCD and user-friendly interface, the Godrej GS-3P Fitness Sorter provides every operator with a more comfortable and efficient working environment. Its 3 pockets allow operator to perform daily cash-processing jobs, without any interruption. Suspects, unrecognized and strange notes, are automatically diverted to the reject pocket, assuring continuous operation.
Features
- Full fitness sorting – Detection of taped, soiled, torn, missing corners, holes, graffiti etc.
- Enhanced counterfeit detector – Magnetic sensor, UV sensor, IR sensor
- User friendly interface – Easy menu and settings
- Various operation modes – Fitness, Count, Single, Face Orient, Dispense
- Easy upgrade – Using USB memory
- 5” TFT Color LCD, Resistive Touch Screen
Specifications
|
Dimension |
306(W)x334(D)x380(H) |
| Weight | 20 Kg |
| No of Pockets | 2 + 1 (Reject) |
| Hopper Capacity | 700 notes |
| Stacker 1 Capacity | 200 notes |
| Stacker 2 Capacity | 200 notes |
| Reject Capacity | 100 notes |
| Preset Batch Number | 1-200 |
| Display type | 5” TFT Color LCD, Resistive Touch Screen |
| Counterfeit Detection | MR (MG), UV, IR |
| Discrimination Modes | Fitness, Count, Single, Face Orient, Dispense |
| Interface | 3 RS232C port (9 pin D-sub & 2 RJ11), USB (A & B), LAN |
| Counting Speed | 700 / 1000 npm |
| Banknote size range | W: 100 ~ 185 mm, H: 60 ~ 90 mm |
| Banknote thickness range | 0.08 ~ 0.12 mm |
| Multiple Currencies Support | 1 (Available up to 3) |
| Power requirements | 100~240 VAC, 50-60 Hz |
| Power consumption | Standby: 16W; Operation: 120W |
| Operational requirements | 10 to 40 / 0 to 85 RH |
Specifications
| Sorting Type | Fitness Sorting |
|---|---|
| Number Of Pockets | 3 Pocket |
| Counting Speed | 700 / 1000 npm |
| Machine Type | Fully Automatic |
| Detection Technology | IR |
| Detection Features | MG, 3D, IR, UV |
| Hopper Capacity | 700 notes |
| Stacker Capacity | 400 Notes |
| Color | White |
| Touch Screen Size | 4.3 Inch |
| Tray Size | Standard Size |
| Connectivity | RS232 |
| Power Supply | Standby: 16W; Operation: 120W |
| Compatibility | USB |
| Banknote Size Range | W: 100 ~ 185 mm, H: 60 ~ 90 mm |
| Connectivity Interfaces | 3 RS232C port (9 pin D-sub & 2 RJ11), USB (A & B), LAN |
| Discrimination Mode | Fitness, Count, Single, Face Orient, Dispense |
| Country of Origin | Made in India |
| Usage/Application | Bank, Restaurant and other |
| Dimension | 306(W)x334(D)x380(H) |
| Weight | 20 Kg |
| No of Pockets | 2 + 1 (Reject) |
| Stacker 1 Capacity | 200 notes |
| Stacker 2 Capacity | 200 notes |
| Reject Capacity | 100 notes |
| Preset Batch Number | 1-200 |
| Display type | 5” TFT Color LCD, Resistive Touch Screen |
| Counterfeit Detection | MR (MG), UV, IR |
| Discrimination Modes | Fitness, Count, Single, Face Orient, Dispense |
| Interface | 3 RS232C port (9 pin D-sub & 2 RJ11), USB (A & B), LAN |
| Banknote size range | W: 100 ~ 185 mm, H: 60 ~ 90 mm |
| Banknote thickness range | 0.08 ~ 0.12 mm |
| Multiple Currencies Support | 1 (Available up to 3) |
| Power requirements | 100~240 VAC, 50-60 Hz |
| Power consumption | Standby: 16W; Operation: 120W |
| Operational requirements | 10 to 40 / 0 to 85 RH |
| Minimum order quantity | 1 Piece |
