Description

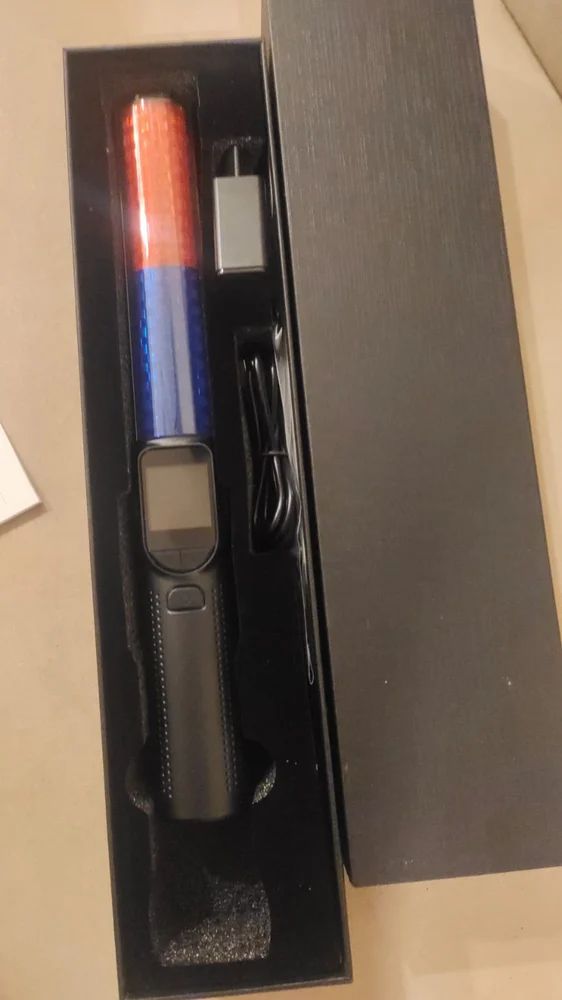

Quick Test Non Contact Breath Alcohol Analyzer MS09Q
Portable digital display breath fuel cell alcohol tester breathalyzer
Technical parameetrs:
|
Sensor |
Electrochemical fuel cell type sensor |
|
Measurement mode |
Quick screening, automatic pumping |
|
Test distance |
3~5cm |
| Battery | 3000mAhLithium rechargeable battery |
| Display | 1.4-inch LCD display |
| Continuous measurement time | more than 10 hours |
MS-09Q is a rapid breath alcohol analyzer for quick testing with following
features:
(1)UK made Electrochemical/Fuel cell sensor with high reliability;
(2)Quick and Precise Analysis;
(3)Rapid and convenient, do not need mouthpieces;
(4)With Traffic baton and flashlight illumination function
(5)Large battery capacity, can testing for 8 hours.
| Details | Technical Data |
| Principle of measurement | Electrochemical Sensor, alcohol-specific |
| Measurement Range | 0~ 80mg/100ml BAC |
| Test Mode | For quick testing, automatic sampling |
| Way of Breath Sample Extraction | Motor continuous air extraction, speed no less than 0.8L |
| Temperature Range-operation | -5℃~+45℃ |
| Temperature Range-storage | 30℃~70℃ |
| Measuring Time | Adjustable( Minimum time: 1 second) |
| Working Pressure | 600~1400hPa |
| Working Temperature | 20~98%r.h. |
| Screen | OLED Digital Screen |
| Battery | 1 rechargeable battery, 3.7V/3000mAh |
| Continuous Working Time | More than 8 hours |
| Flashing Light | 2 lights of 3W |
| Vibration Alarm | When the concentration exceed the set point value, device will give Vibration Alarm |
| Dimensions | L(324)mmX Outer Diameter(45)mm |
| Weight | Approx. 231g |
| Test Item | Blowing distance 4-5cm |
| Test concentration(mg/100ml) | |
| Analyzing time | <5s |
| Clearing time | <10s |
Specifications
| Application Type | Industrial |
|---|---|
| Type | Handheld |
| Sensor Type | Fuel Cell |
| Brand | ULTRASHINE |
| Usage/Application | Industrial |
| Model Name | MS09Q |
| Type Of Testing Machines | Alcohol Breath Analysers |
| Measurement Mode | Active Sampling |
| Packaging Type | Box |
| Portability | Handheld |
| Accuracy | ± 5 % |
| Color | Blue |
| Model Name/Number | ULTRASHINE MS09Q |
| Display Type | Digital |
| Load Capacity | 2000 Tester per Day |
| Grade | Semi-Automatic |
| Material | ABS |
| Sensor | Electrochemical fuel cell type sensor |
| Measurement mode | Quick screening, automatic pumping |
| Test distance | 3~5cm |
| Battery | 1 rechargeable battery, 3.7V/3000mAh |
| Display | 1.4-inch LCD display |
| Continuous measurement time | more than 10 hours |
| Details | Technical Data |
| Principle of measurement | Electrochemical Sensor, alcohol-specific |
| Measurement Range | 0~ 80mg/100ml BAC |
| Test Mode | For quick testing, automatic sampling |
| Way of Breath Sample Extraction | Motor continuous air extraction, speed no less than 0.8L |
| Temperature Range-operation | -5℃~+45℃ |
| Temperature Range-storage | 30℃~70℃ |
| Measuring Time | Adjustable( Minimum time: 1 second) |
| Working Pressure | 600~1400hPa |
| Working Temperature | 20~98%r.h. |
| Screen | OLED Digital Screen |
| Continuous Working Time | More than 8 hours |
| Flashing Light | 2 lights of 3W |
| Vibration Alarm | When the concentration exceed the set point value, device will give Vibration Alarm |
| Dimensions | L(324)mmX Outer Diameter(45)mm |
| Weight | Approx. 231g |
| Test Item | Blowing distance 4-5cm |
| Analyzing time | <5s |
| Clearing time | <10s |
| Minimum order quantity | 1 Piece |
