Description

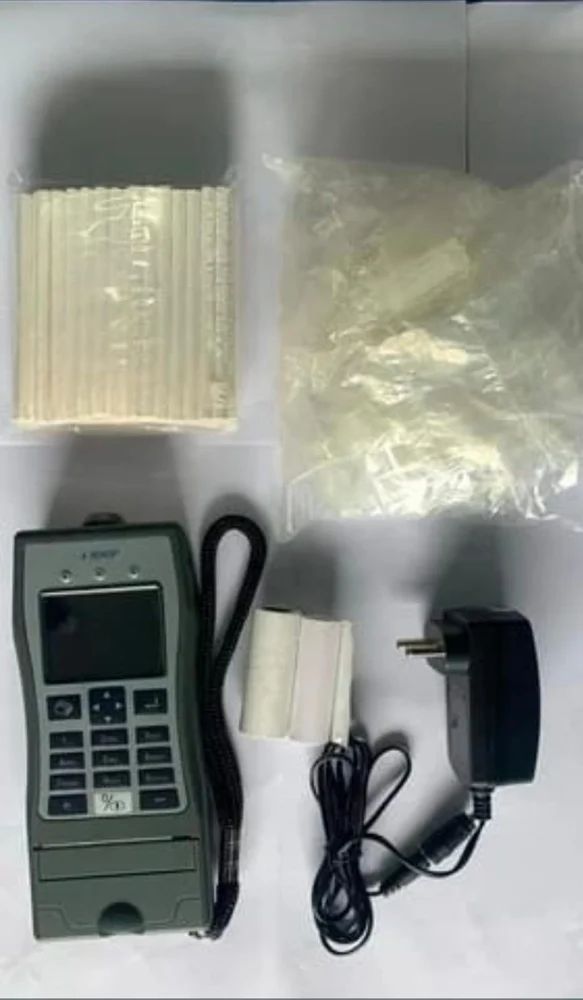

MSIPL Alcohol Breath Tester Inbuilt Printer A8080P
Current Model of Breath Analyzer A8080P has a inbuilt thermal printer, 50,000 memory, provision to enter full subject data for storage and printout.
Technical Specifications :
|
Device: |
|
|
Measuring modes |
Active and passive |
|
Measuring range |
500 mg/dL |
|
Accuracy: |
|
|
Max. Measuring error, in relation to the ethanol standard: |
|
|
Range 0 to100 mgldL |
+5 mg/dL |
|
Range 1 to 200 mgldL |
+5 % of measured value |
|
Range 201 upto 500 mgldL |
+10 % of measured value |
|
Standard Deviation |
0.008% |
|
Ambient conditions: |
|
|
Temperature range for operation |
-5 C to +50 C / +23F to +122F |
|
Temperature range for storage |
-5 C to +60 C / -4F to +14oF |
|
Optimum storage temperature (sensor) |
0 C to +25 C / +32F to +77F |
|
Ambient pressure |
600 to 1400 hPa |
|
Ambient humidity |
20 to 98 % r.h. |
|
Minimum expiration volume |
800 mL or depending on requirement |
|
Batteries |
Inbuilt Li-on Battery- Re chargeable |
|
Number of measurements per battery charge. |
more than 500 tests, Depending on the batteries and the ambient conditions |
|
Device interface |
USB Interface. Data can be transferred to a PC or printer. |
|
Dimensions ( L x W x H) |
7inches X 3inches X 1.5 inches. |
|
Weight |
350g incl. Batteries |
|
Miscellaneous |
Ready to measure after switching on: approx. 5 sec. |
|
Ready to measure after 0 % measurement: approx. 2 sec. |
|
|
Ready to measure after 1 % measurement: approx. 5 sec. |
|
|
Sensor type |
E600 electrochemical measuring cell |
|
Cross sensitivities |
Negligible for other substances. e.g. atcetone. CO etc. |
|
Measurement units |
All units used world wide configurable |
|
Operation |
Menu-driven with clear text information |
|
Input |
QWERTY key pad. |
|
Power-saving mode |
Device switches off automatically after 2.5 minutes of non-operation, the background lighting switches off after 15 seconds |
|
Display |
2.4 ich color TFT LCD,fully graphic. |
Specifications
| Brand | ULTRASHINE |
|---|---|
| Application Type | Industrial |
| Type | Handheld |
| Sensor Type | Electrochemical |
| Grade | Semi Automatic |
| Model Name | A8080P |
| Warning Signal | Beep |
| Measurement Mode | Active and Passive Mode |
| Accuracy | ± 5 % |
| Usage/Application | Law Enforcement Agencies |
| Display | 2.4 ich color TFT LCD,fully graphic. |
| Type Of Mouthpiece | Replaceable |
| Analyzing Time | 3 s |
| Display Type | Digital |
| Clearing Time | 6 s |
| Packaging Type | Box |
| Country of Origin | Made in India |
| Brand- | ULTRASHINE |
| Measuring modes | Active and passive |
| Measuring range | 500 mg/dL |
| Range 0 to100 mgldL | +5 mg/dL |
| Range 1 to 200 mgldL | +5 % of measured value |
| Range 201 upto 500 mgldL | +10 % of measured value |
| Standard Deviation | 0.008% |
| Temperature range for operation | -5 C to +50 C / +23F to +122F |
| Temperature range for storage | -5 C to +60 C / -4F to +14oF |
| Optimum storage temperature (sensor) | 0 C to +25 C / +32F to +77F |
| Ambient pressure | 600 to 1400 hPa |
| Ambient humidity | 20 to 98 % r.h. |
| Minimum expiration volume | 800 mL or depending on requirement |
| Batteries | Inbuilt Li-on Battery- Re chargeable |
| Number of measurements per battery charge. | more than 500 tests, Depending on the batteries and the ambient conditions |
| Device interface | USB Interface. Data can be transferred to a PC or printer. |
| Dimensions ( L x W x H) | 7inches X 3inches X 1.5 inches. |
| Weight | 350g incl. Batteries |
| Miscellaneous | Ready to measure after switching on: approx. 5 sec. |
| Sensor type | E600 electrochemical measuring cell |
| Cross sensitivities | Negligible for other substances. e.g. atcetone. CO etc. |
| Measurement units | All units used world wide configurable |
| Operation | Menu-driven with clear text information |
| Input | QWERTY key pad. |
| Power-saving mode | Device switches off automatically after 2.5 minutes of non-operation, the background lighting switches off after 15 seconds |
| Minimum order quantity | 1 Piece |
