ULTRASHINE 33 Multizone Walk Through Metal Detector SF-33 Zone

Description

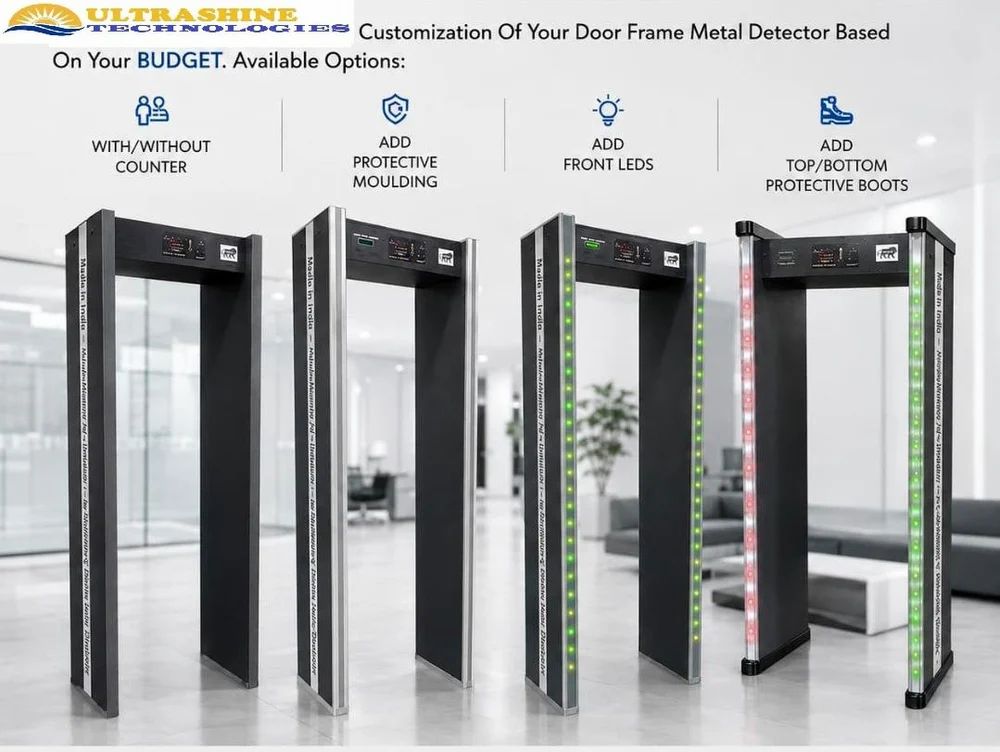

MultiZone Door Frame Metal Detector SAFEGATE-33 ZONE

SAFEGATE is a high performance 33 zone walkthrough metal detector which meets all international security standards. Each detection zone functions as an independent detector and automatically increases discrimination by reducing the cumulative signal effect caused by distributed harmless objects.

A full-height light bar displays the location of the detected metal masses in transit. This results in rapid identification of threat and a reduction of manual searches. LED bar-graph, indicator lamps, sensitivity and alarm controls are provided in the console at the top of the door frame. The detection capability is independent of the transit speed.

Components of the highest quality and proven reliability are employed in the manufacture of SAFEGATE to ensure a long, trouble-free life. A mother board system with plug-in cards is employed for minimum down time and ease of serviceability. DSP provides greater sensitivity, noise immunity, discrimination, detection uniformity, and overall product reliability.

Features:
• High performance multi-zone detection
• 33 detection zones for accurate pinpointing of metal
• Exceptional Immunity to external interferences
• Very high sensitivity suitable for anti-theft applications
• Quick installation minimal training required
• Auto calibration – Does not require zero adjustment
• Detects all metals, alloys and ferrites
• 250 levels of zone wise sensitivity adjustment
• LED bar graph signal strength indicator
• LED based composite zone display
• Access to programming protected by password
• Intelligent people counter for entry, exit and algebraic sum
• SMPS power supply for use with 90V to 270V
• Built in full-function battery backup for over 12 hours
• Easy to mount and assemble
• Wireless remote control

Specifications
