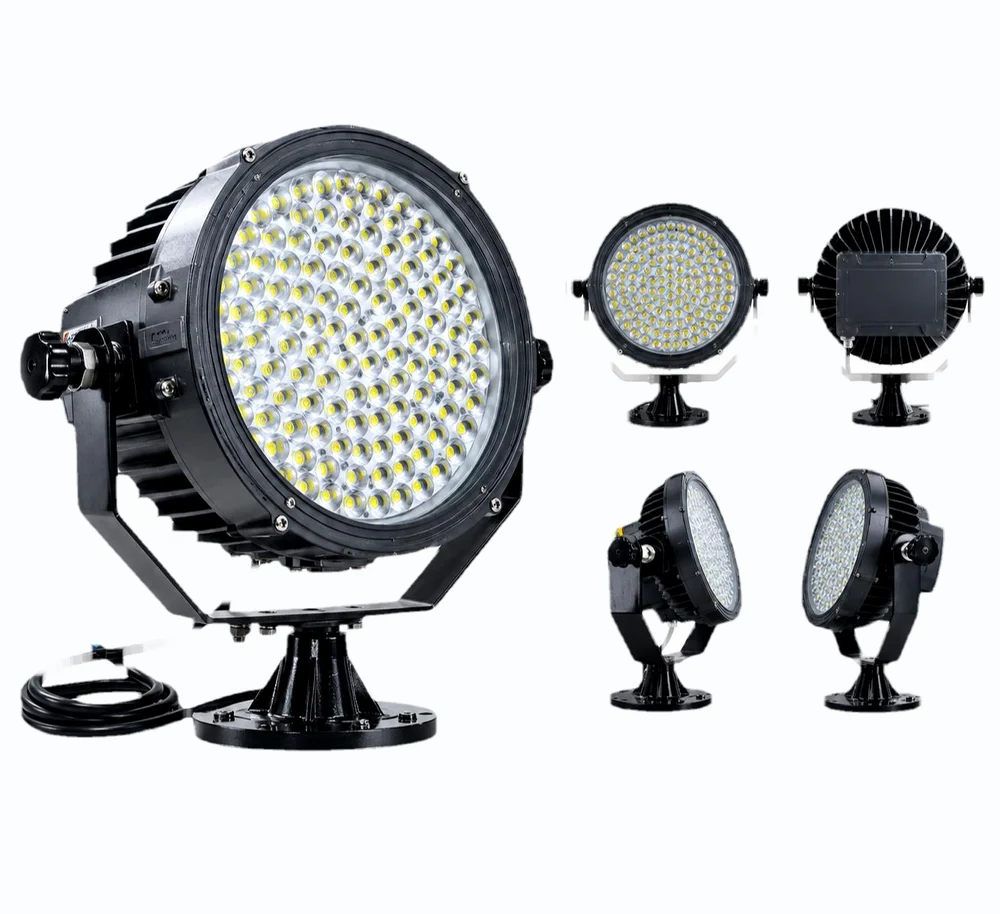

Manual Revolving Led Search Light – Yk Revo CS Series – 150w / 200w / 250w / 300w (Tower Light)
Product Description :High efficiency Power Led’s . Free from UV interference . High Beam Range. Narrow Beam 5-10 degree customized at extra cost. Instant Illumination by Led Lamp. Life More than 1,00,000 burning hrs. High Reflectivity mirror back lens/reflector. Optical Grade PMMA/PC Lens/Reflector. Multiple Circuit to Avoid Complete Run- Down. It comes with Conical Stand namely called as (CS) stand. It can be mounted on top of wall / can be used on watch towers etc.
YK REVO CS Series – Technical Specifications
| Specification | Details |
|---|---|
| Model | YK Revo CS Series |
| Power | 150W / 200W / 250W / 300W |
| Light Source | High-efficiency Power LED |
| Input Voltage | 100–300 VAC, 50 Hz |
| Rated Supply | 230V AC |
| Beam | Narrow Beam, 5–10° |
| Focus Range | 150W: up to 400m / 200W: up to 600m / 250W: up to 800m / 300W: up to 1000m |
| Movement | Manual Swivel |
| Horizontal Movement | 360° |
| Vertical Movement | 45° |
| Stand | CS Conical Mountable Stand |
| CCT | 6500K |
| Efficiency | >140 lm/W |
| Protection | IP66 |
| Lens | Optical Grade PMMA/PC |
| Glass | Toughened Glass with Silicon Gasket |
| Body | Die-cast LM6 body with air fins, powder coated |
| Operating Temperature | -10°C to +55°C |
| Reflector Efficiency | >90% |
| Average Lux @ 10m | Approx. 2,000–10,000 lux depending on model |
| Approx. Weight | 150W: 10kg / 200W: 12kg / 250W: 15kg / 300W: 16kg |
Specifications
| Light Source | High-efficiency Power LED |
|---|---|
| Power Source | Mains Power |
| Beam Distance | 1000 m |
| Battery Type | Die Cast with Air Fins Powder coated |
| Battery Capacity | AC Operated |
| Body Material | Aluminium |
| IP Rating | IP 66 |
| Usage/Application | Security |
| Brand | ULTRASHINE |
| Certification | CE |
| Lighting Type | LED |
| Lighting Color | Cool White |
| Backup Time | 10 hr |
| Working Modes | High Low |
| Mounting Type | Tripod Mount |
| Country of Origin | Made in India |
| LED WATTAGE | 150 W, 200 W, 250 W, 300 W |
| Movement | Manual Swivel |
| Working Voltage | 100-300 Vac , 50Hz |
| Average Lux Level | 2000-10000 lux (Depending on Models) with Circle of Approx 1 Meter |
| Model | YK Revo CS Series |
| Power | 150W / 200W / 250W / 300W |
| Input Voltage | 100–300 VAC, 50 Hz |
| Rated Supply | 230V AC |
| Beam | Narrow Beam, 5–10° |
| Focus Range | 150W: up to 400m / 200W: up to 600m / 250W: up to 800m / 300W: up to 1000m |
| Horizontal Movement | 360° |
| Vertical Movement | 45° |
| Stand | CS Conical Mountable Stand |
| CCT | 6500K |
| Efficiency | >140 lm/W |
| Protection | IP66 |
| Lens | Optical Grade PMMA/PC |
| Glass | Toughened Glass with Silicon Gasket |
| Body | Die-cast LM6 body with air fins, powder coated |
| Operating Temperature | -10°C to +55°C |
| Reflector Efficiency | >90% |
| Average Lux @ 10m | Approx. 2,000–10,000 lux depending on model |
| Approx. Weight | 150W: 10kg / 200W: 12kg / 250W: 15kg / 300W: 16kg |
| Minimum order quantity | 1 Piece |
