Description

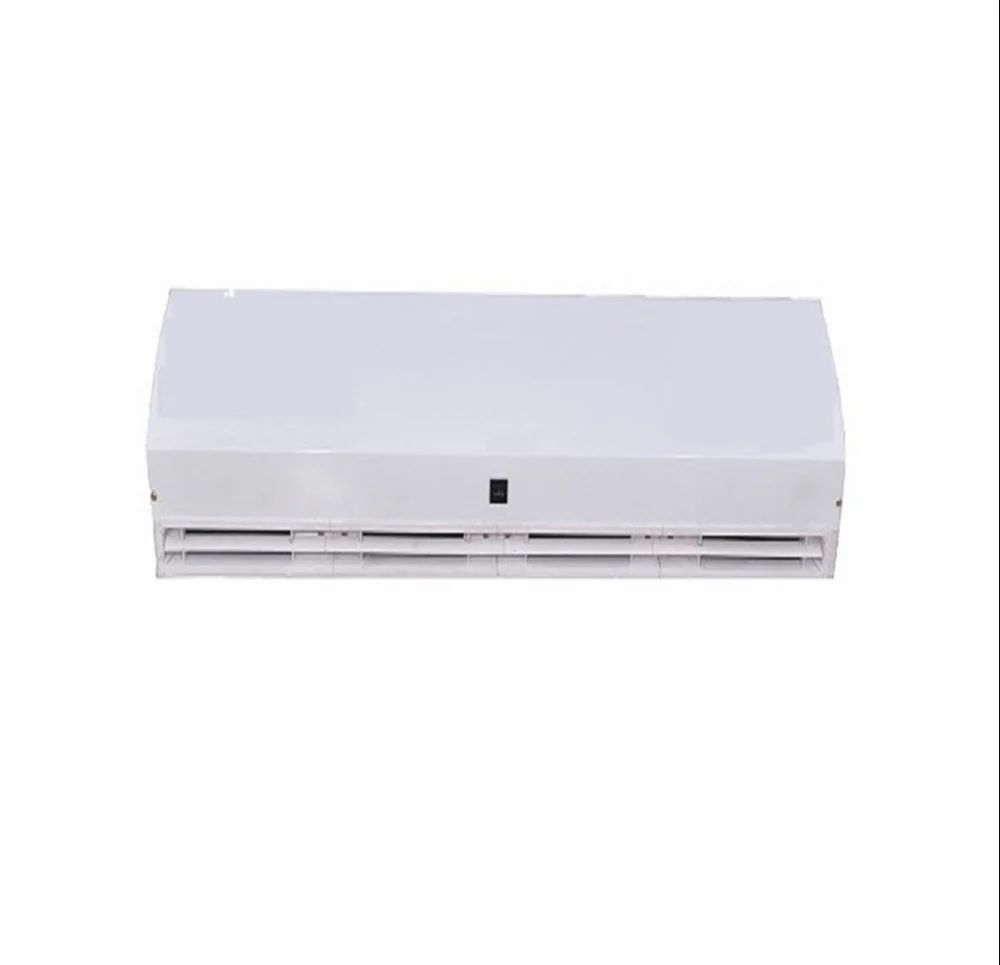

Industrial Door Air Curtain 5 feet Size
Product Features:
- Heat resistance
- Easy to clean
- Eye-catchy look
Other Details:
- Horizontal Air Intake Centrifugal (Full Metal)
- Full Metal Housing with Unique Design
- Centrifugal Style Fan
- Uniform force Air Flow
- Air Speed greater than 18 m/s
- One Year Warranty on any manufacturing defect
- Switch to Control High & Low Speed
|
MODEL |
VOLTAGE |
DIAMETER |
INPUT |
AIR |
AIR |
NOISE |
DIMENSION |
HEIGHT |
|
(mm) |
(w) |
(mis) |
(m3/h) |
(db) |
(mm) |
(Feet) |
||
|
3 Feet |
220V/50HZ |
120 |
360 |
18.21 |
1260 |
46 |
900X230X212 |
8-10 |
|
4 Feet |
220V/50HZ |
120 |
495 |
18.21 |
1680 |
47 |
1200X230X212 |
8-10 |
|
5 Feet |
2201//50HZ |
120 |
605 |
18-21 |
2100 |
50 |
1500)(230X212 |
8-10 |
Specifications
| Fan Size | 5 ft (1500 mm) |
|---|---|
| Size | 5 ft (1500 mm) |
| Width | 5 ft |
| Body Material | MS Powder Coated |
| Door Size | 5 Feet |
| Air Velocity | >20-22 m/s |
| Effective Height | Up to 9 ft |
| Mounting | Wall Mount |
| Color | White |
| Dimensions | 1500)(230X212 mm |
| Motor Power | 600 Watt |
| Noise Level | <70 dB |
| Air Flow | 20-22 m/s |
| Usage/Application | Industrial Usage |
| Model Type | Commercial |
| MODEL | VOLTAGE FREQUENCY |
| 3 Feet | 220V/50HZ |
| 4 Feet | 220V/50HZ |
| 5 Feet | 2201//50HZ |
| Minimum order quantity | 1 Piece |
