Description

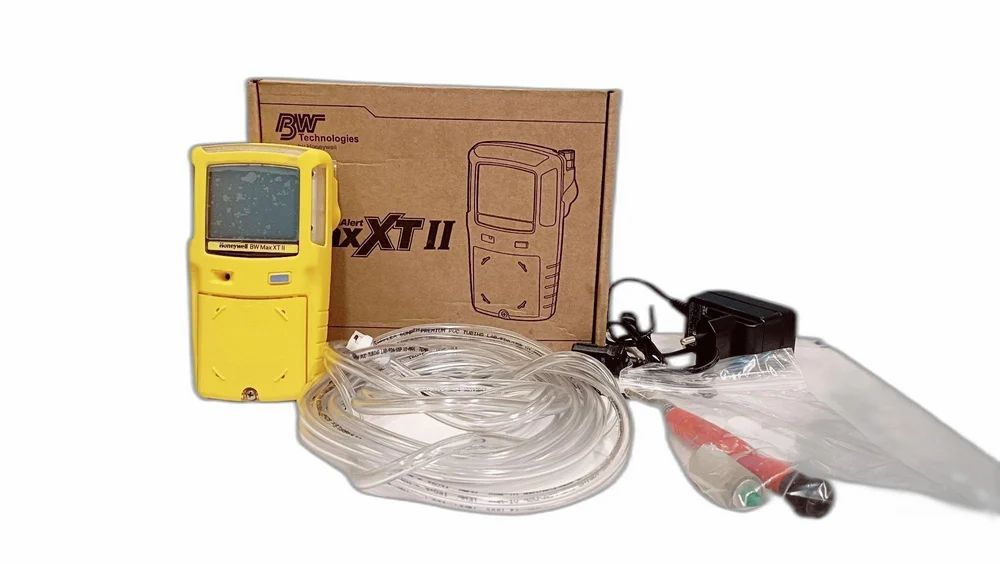

Honeywell BW™ Max XT II Multi-Gas Detector
Product Description :-Honeywell GasAlert Max XT II Multi Gas Detector with Inbuilt Pump is a smart, basic, economical way to compliance. Where Laborers feel safe and incidents are minimized so everyone will be able to do more implies savings realized from business continuity and productivity. The Multi gas detector is easy to operate with a Smart Sample pump.
Honeywell GasAlert Max Multi Gas Detector with Inbuilt Pump reliably monitors up to four risks and consolidates straightforward one-button operation with our robust, motorized pump for intelligent, remote testing, ideal for confined spaces. The H2s gas detector’s water-resistant design and robust build make it appropriate for usage in tough situations, offering dependable performance even under tough conditions.
Features Of GasAlert Max XT II Multi Gas Detector with Inbuilt Pump:
- Monitors H2S, CO, O2 and combustibles
- One-button operation with the robust, motorized pump
Standard features of BW products:
- Continuous LCD shows real-time gas concentrations
- Its lightweight and Compact design makes it comfortable to wear
- Water-resistant
- Simple automatic calibration procedure; compatible with BW MicroDock II automatic test & calibration station
- Full-function self-test of battery status, sensor, circuit integrity, and audible/visual alarms on start-up
- Bright wide-angled visual alarm bars
- Built-in concussion-proof boot
| Manufacturer |
Honeywell |
|---|---|
| Model No |
GasAlert Max XT II |
| Target Gases |
Carbon Monoxide (CO), Combustibles (LEL), Hydrogen Sulfide (H2S), Oxygen (O2) |
| Carbon Monoxide |
0 to 1000 ppm |
| Resolution_1 |
1 ppm |
| Combustibles |
0 to 100% LEL |
| Resolution_2 |
1% LEL |
| Hydrogen Sulfide |
0 to 200 ppm |
| Resolution_3 |
0.1 PMM |
| Oxygen |
0 to 30% |
| Resolution_4 |
0.1% Vol |
| Operating Temperature |
-20 to 50ºC |
| Operating Humidity |
10 – 100% RH (non-condensing) |
| Alarm Type |
Visual, vibrating, audible (95dB) – Low, High, STEL, TWA, OL (over limit), Low Battery, Pump |
| Pump Draw |
Sample from up to 75 ft. / 23 m |
| Battery Life |
13 hours @32°F/0°C 8 hours @ -4°F / -20°C Recharges in 6 hours |
| Tests |
Audible/visual alarms on activation, sensors, battery, pump and circuitry (continuous) |
| Ratings |
EMI/RFI: Complies with EMC Directive 2004/108/E |
| IP Rating |
IP66/67 |
| Certifications & Approvals |
Class I, Div. 1, Gr. A, B, C, D ; IECEx: Ga Ex ia IIC T4 ;ATEX: II 1 G Ga Ex ia IIC T4 ; Br Ex ia IIC T4 |
| Dimension |
131 X 70 X 52 mm |
| Weight |
328 Grams |
Specifications
| Series | BW Max XT II |
|---|---|
| Detector Type | Multi gas |
| Gases Monitored | LEL, H₂S, O₂ |
| Sampling Method | Pump suction |
| Output Signal | 4–20 mA |
| Certification | CE |
| Type | Portable Multi |
| Temperature Range | -20 to 50ºC |
| Humidity | 10 – 100% RH (non-condensing) |
| Pump | Yes |
| Country of Origin | Made in India |
| Minimum order quantity | 1 Piece |
