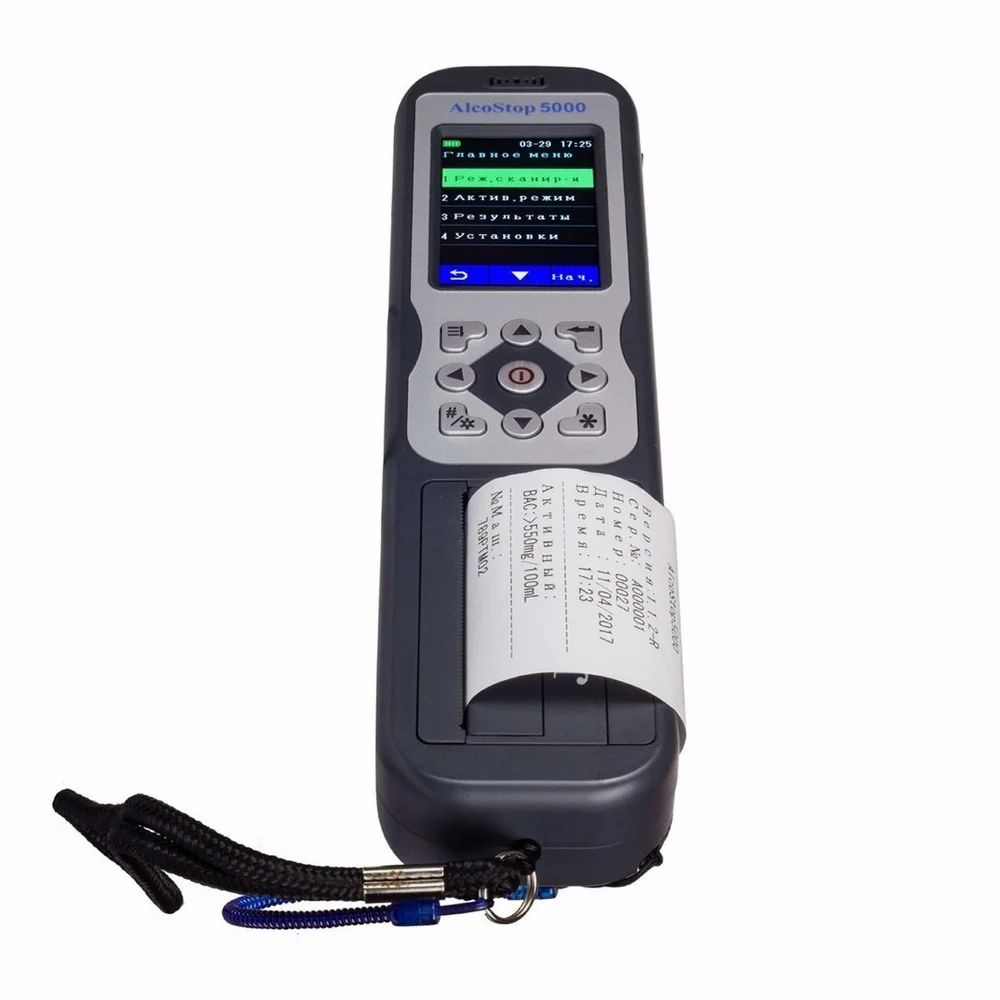

Digital Breathalyzer with Built-in Printer (AlcoStop 5000)

Description

Digital Breathalyzer with Built-in Printer (AlcoStop 5000)
Product Description :PRODUCT OVERVIEW

AlcoStop 5000 is a digital alcohol breath analyser with an integrated thermal printer. Publicly available product
information identifies the model as using an electrochemical fuel-cell sensor, a 2.8-inch touch screen, active and scan
measurement modes, internal result memory and USB data transfer. It is designed for professional alcohol screening
where immediate printed results are useful.
KEY FEATURES
• Electrochemical fuel-cell sensor technology.
• 2.8-inch touch-screen display.
• Built-in thermal printer for immediate test-result printing.
• Active and scan measurement modes.
• Measurement range: 0–550 mg/100 ml BAC.
• Stores up to 30,000 test results in the published specification.
• Input fields can include police number and vehicle/car number.
• USB connection for transfer of stored data to a PC.
• Portable design suitable for field and workplace screening.
TECHNICAL SPECIFICATIONS
Parameter Specification
Model AlcoStop 5000
Display 2.8-inch Touch Screen
Sensor Electrochemical Fuel Cell Sensor
Measurement Range 0–550 mg/100 ml BAC
Measurement Modes Active Mode & Scan Mode
Memory 30,000 test results
Printer Built-in Thermal Printer
Data Transfer USB / PC Data Transfer
Input Information Police Number / Car Number
Units mg/100 ml, mg/L, BAC %

RODUCT OVERVIEW
AlcoStop 5000 is a digital alcohol breath analyser with an integrated thermal printer. Publicly available product
information identifies the model as using an electrochemical fuel-cell sensor, a 2.8-inch touch screen, active and scan
measurement modes, internal result memory and USB data transfer. It is designed for professional alcohol screening
where immediate printed results are useful.
KEY FEATURES
• Electrochemical fuel-cell sensor technology.
• 2.8-inch touch-screen display.
• Built-in thermal printer for immediate test-result printing.
• Active and scan measurement modes.
• Measurement range: 0–550 mg/100 ml BAC.
• Stores up to 30,000 test results in the published specification.
• Input fields can include police number and vehicle/car number.
• USB connection for transfer of stored data to a PC.
• Portable design suitable for field and workplace screening.
TECHNICAL SPECIFICATIONS
Parameter Specification
Model AlcoStop 5000
Display 2.8-inch Touch Screen
Sensor Electrochemical Fuel Cell Sensor
Measurement Range 0–550 mg/100 ml BAC
Measurement Modes Active Mode & Scan Mode
Memory 30,000 test results
Printer Built-in Thermal Printer
Data Transfer USB / PC Data Transfer
Input Information Police Number / Car Number
Units mg/100 ml, mg/L, BAC %ULTRASHINE TECHNOLOGIES | ALCOSTOP 5000
APPLICATIONS
• Traffic Police & Law Enforcement
• Industrial Safety & Workplace Screening
• Security Checkpoints
• Transport & Fleet Operations
• Mining & Construction Sites
• Corporate / Institutional Alcohol Screening
STANDARD / TYPICAL FEATURES
The exact supplied accessories can vary by seller and configuration. Typical configurations may include the analyser,
charging/power accessories, printer consumables, mouthpieces and carrying/storage accessories. Please confirm the
final package against the quotation or purchase orderAlcohol breathalyzer with built-in thermal printer
Measurement Range: 0-550mg/100mlBAC,
Input message: Police number, car number
Memory: 30, 000 test result.
Unit: Mg/100ml, mg/l BAC %
Support data transfer to PC

Specifications
