Description

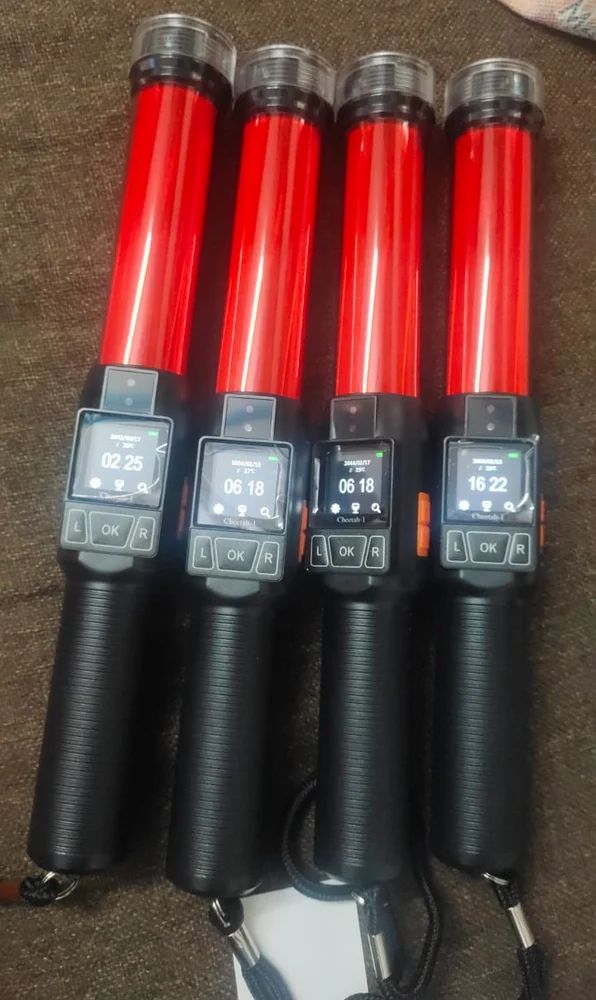

Cheetah-1 Rapid Screening Alcohol Tester
Product features：
• UK made Electrochemical/Fuel cell sensor with high sensitivity and reliability
• Rapid and convenient, Quick and Precise Analysis, do not need mouthpieces
• device will give Vibration Alarm
• The function of electronic whistle makes the law enforcement more convinent and flexible
• With Traffic baton and flashlight illumination function
• Built in rechargeable lithium battery, ensuring more than 8 hours testing.
| Details | Technical Data | ||
| Principle of measurement | Electrochemical Sensor, alcohol-specific | ||
| Measurement Range | 0～150mg/100ml BAC | ||
| Test Mode | For quick testing, automatic sampling | ||
| Way of Breath Sample Extraction | Motor continuous air extraction, speed no less than 0.8L | ||
| Temperature range -operation | -5°C~45°C | ||
| Temperature range –storage | -30°C~70°C | ||
| Measuring Time | Adjustable( Minimum time: 1 second) | ||
| Working Pressure | 600~1400hPa | ||
| Temperature Humility | 45～85%r.h. | ||
| Screen | 1.3inch LCD Digital Screen | ||
| Continuous Working Time | More than 8 hours | ||
| Flashing Light | 2 lights of 3W | ||
| Vibration Alarm | When the concentration exceed the set point value, device will give Vibration Alarm |
||
| Test Item | Blowing distance 4-5cm | ||
| Test concentration（mg/100ml） | |||
| 20 | 40 | 150 | |
Specifications
| Brand | ULTRASHINE |
|---|---|
| Application Type | Law Enforcement |
| Type | Handheld |
| Sensor Type | Fuel Cell |
| Model Name | Cheetah 1 |
| Mouthpiece Type | Non-Contact |
| Measurement Mode | Active Sampling |
| Portability | Handheld |
| Accuracy | 0.01 % |
| Printer | No |
| Substance Tested | Alcohol |
| Display Type | Digital |
| Sample Type | Breath |
| Analyzing time | <5s |
| Clearing Time | <15s |
| Sensitivity | The test concentration will be higher than 8mg/100ml at 20mg/100ml in the condition of 8-10cm blow |
| Measuring Range | 15~35 35~65 ＞80 |
| Model- | Cheetah-1 |
| Details | Technical Data |
| Principle of measurement | Electrochemical Sensor, alcohol-specific |
| Measurement Range | 0～150mg/100ml BAC |
| Test Mode | For quick testing, automatic sampling |
| Way of Breath Sample Extraction | Motor continuous air extraction, speed no less than 0.8L |
| Temperature range -operation | -5°C~45°C |
| Temperature range –storage | -30°C~70°C |
| Measuring Time | Adjustable( Minimum time: 1 second) |
| Working Pressure | 600~1400hPa |
| Temperature Humility | 45～85%r.h. |
| Screen | 1.3inch LCD Digital Screen |
| Continuous Working Time | More than 8 hours |
| Flashing Light | 2 lights of 3W |
| Vibration Alarm | When the concentration exceed the set point value, device will give Vibration Alarm |
| Test Item | Blowing distance 4-5cm |
| 20 | 40 |
| Minimum order quantity | 1 Piece |
