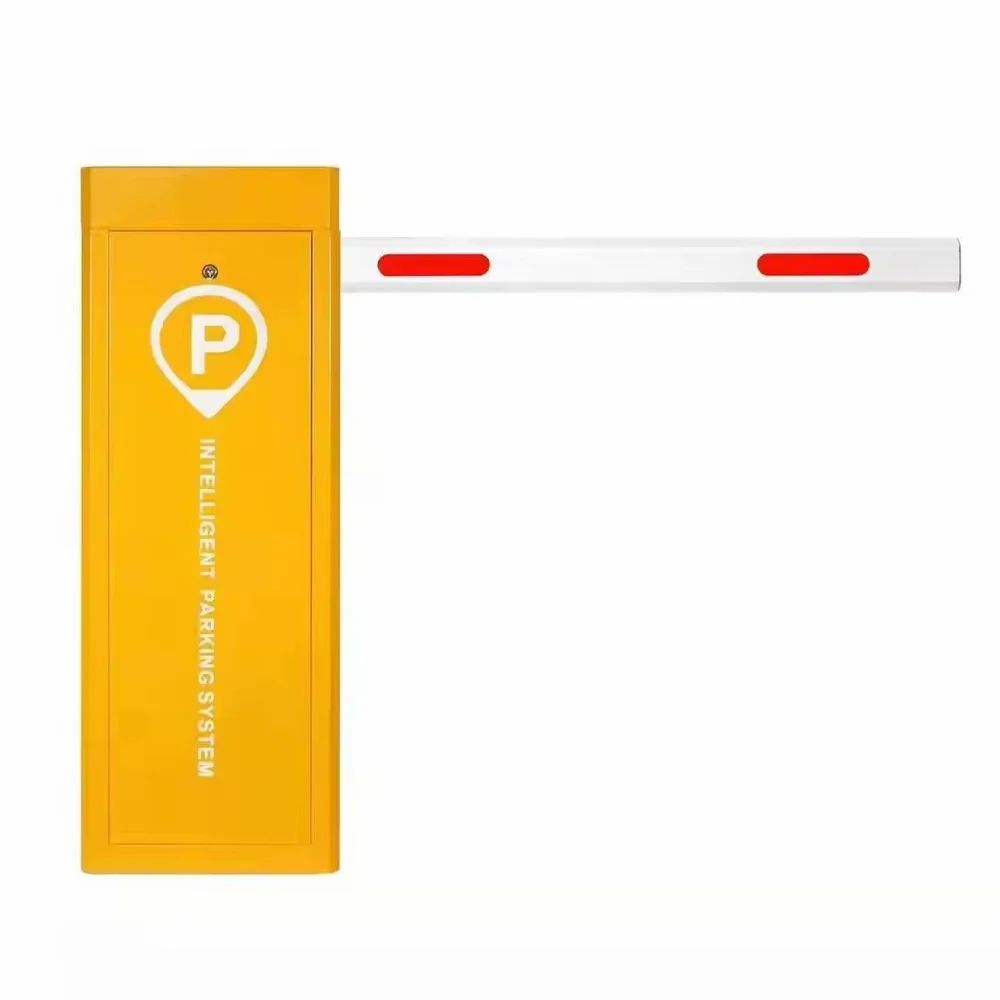

Boom Barrier System

Description

Automatic Road Boom Barrier

220VAC/24VDC motor Classical Traffic Yellow Road Boom Barrier with Aluminium Telescopic

Boom 1. High-power DC brushless motor.
2. Outdoor Waterproof: Multi-Environment adapted.
3. Crank and rod structure makes the boom run placidly.
4. Run speed can adjust from 1S to 5S.
5. Remote control to operate the barrier gate.
6. Housing color: Yellow, Black, Gold.
7. Suitable for Highway, toll station, open-parking ground, underground parking, community,shopping center,etc.

Features：

1.-The traffic barrier is widely used for the facilities of parking, traffic or toll system.

2.-Arms can be chosen from 3 meters to 6 meters.

3.-This type of barrier could match with direct boom( pole), fold boom Or fence boom..

4.-Advanced manual release .Clutch key can be used to open the clutch when electricity is cut off.

5.-All the process is soft without any noise and shaking.

6.-This barrier gate has many input terminals for photocell, Airwave switch, loop detector, back-up battery(for DC Motor), toll gate system and output terminals for lamp.

7.-Housing color: yellow,red ,blue,orange,white (optional)

8.-Boom arm direction can be chosen leftward to rightward.

9.-Auto warming up,suitable for cold environment.

10-Controlling way :wireless or wiring multiple push button for OPEN,CLOSE,STOP function.

Model: (AC) Motor

Power supply: 220VAC 50HZ / 110VAC 60HZ

Motor’s power: 90W 220VAC
Max length of boom: 6m
Time for up/down: 3S( for 1~3m),6S( for 4~6m)
Environment temperature: -20oC-50oC

Protection class: IP55

Specifications
