Description

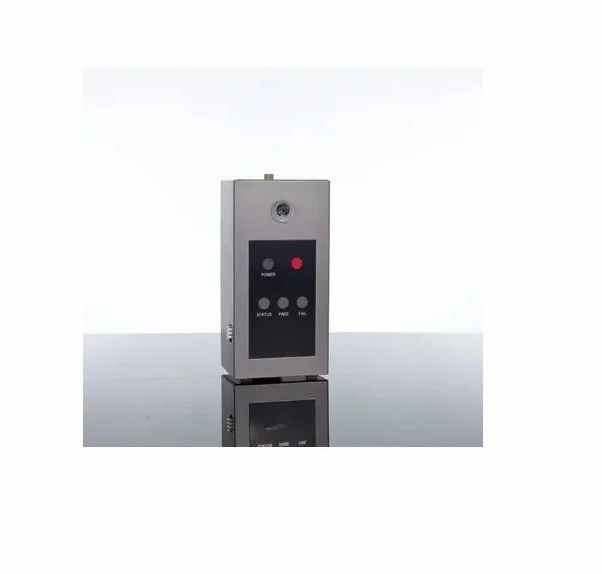

ALCOSCAN EBS 010 Entrance Breathalyzer System
Automated No-Contact Entrance Breathalyser EBS010 with Hydraulic Bracket is a high speed industry breathalyser suitable for installation at gates, entrances to sites, turnstiles, refineries and at pedestrian entrance points or as a standalone voluntary alcohol test unit.
EBS010 contains an Ethanol Specific Fuel Cell sensor and is capable of providing up to 12 tests per minute when installed as a standalone breathalyser but when fully integrated into access control provides on average up to 6 tests per minute.
Specifications:
- EBS010 Entrance Breathalyser fitted to a robust hydraulic bracket
- Total Weight: 7.5kgs
- Height: 100cm Width: 30cm
- Wall-mounting back plate included
- All gate / door / T&A / Clocking outputs available as per standard EBS010
Simple to install and easy to use:
- Ready for self-install – simply connect the power to a 220V/240V AC plug point.
- Interchangeable / removable fuel cell sensor modules. Buy a spare for calibration intervals.
- Suitable for multiple heights of users.
- Any electrician or handyman can install against any wall with 6 raw bolts.
- Use with OR without paper straws. Order from us.
- Easy to clean with NON-ALCOHOL Steri-Wipes. Order from us.
Production Lead-Time & Freight:
- 1 to 2 weeks after 100% pre-payment depending on stock availability.
- Excludes delivery costs.
Includes a 12 month calibration certificate.
Please note: All breathalysers and breath alcohol sensors require calibration at least once per annum and at more regular intervals depending on use to ensure that results remain accurate.
Sensors are exchangeable and replaceable.
| Spec | Detail |
| Indication of B.A.C | Pass is below 0.01% B.A.C. Fail can be set to fail from 0.01% B.A.C and up |
| Accuracy | +/-0.001%BAC at 0.050%BAC |
| Mouth piece | No Mouthpiece required |
| Sensor | Replaceable fuel cell type alcohol specific sensor |
| Power supply | 12VDC 1.5A power supply required – Supplied Standard |
| Weight | 550g |
| Dimension (mm) | 205 (height) X 108 (width) X 95 |
| Remarks | – Auto power off – Air flow rate checking for no blows – Calibrated to fail from 0.01% B.A.C to prevent access at the lowest possible BrAC levels – Pricing excludes installation / integration costs – Time keeping and attendance technicians can easily install and integrate |
Specifications
| Application Type | Industrial |
|---|---|
| Type | Handheld |
| Brand | Alcoscan |
| Sensor Type | Fuel Cell |
| Model Name | EBS-010 |
| Warning Signal | Beep |
| Type Of Testing Machines | Alcohol Breath Analysers |
| Measurement Mode | Active and Passive Mode |
| Packaging Type | Box |
| Portability | Handheld |
| Accuracy | +/-0.001%BAC at 0.050%BAC |
| Color | Black |
| Display Type | Digital |
| Model Name/Number | EBS Alcoscan |
| Usage/Application | Law Enforcement Agencies |
| Measurement Range | 0.40% BAC |
| Display | Indicator |
| Grade | Automatic |
| Spec | Detail |
| Indication of B.A.C | Pass is below 0.01% B.A.C. Fail can be set to fail from 0.01% B.A.C and up |
| Mouth piece | No Mouthpiece required |
| Sensor | Replaceable fuel cell type alcohol specific sensor |
| Power supply | 12VDC 1.5A power supply required – Supplied Standard |
| Weight | 550g |
| Dimension (mm) | 205 (height) X 108 (width) X 95 |
| Remarks | – Auto power off- Air flow rate checking for no blows- Calibrated to fail from 0.01% B.A.C to prevent access at the lowest possible BrAC levels- Pricing excludes installation / integration costs- Time keeping and attendance technicians can easily install and integrate |
| Minimum order quantity | 1 Piece |
